View productHome / Rental & Stage / AURA FLEX
Flexible & curved
AURA FLEX
Welcome to the inner circle - the industry's smallest 45-degree outer angle.

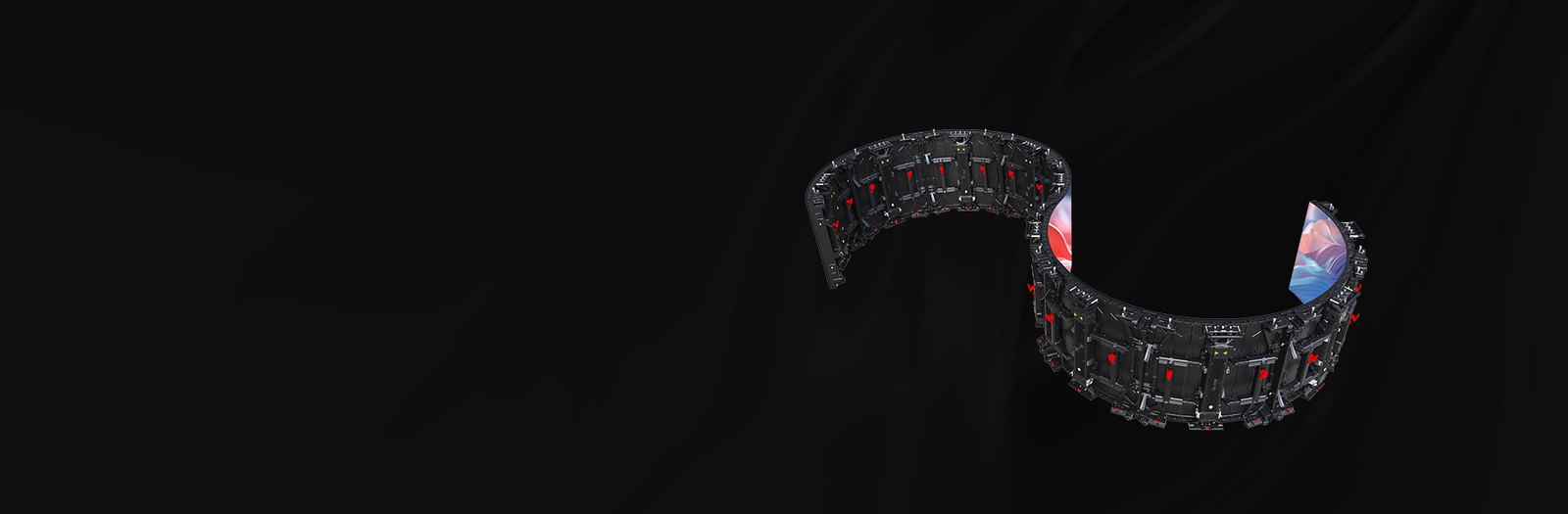

Flexible rental modules for waves, curves and creative shapes – 4-in-1 mountable.
Pixel Pitch 1.9 mmPixel Pitch 2.6 mm
In brief

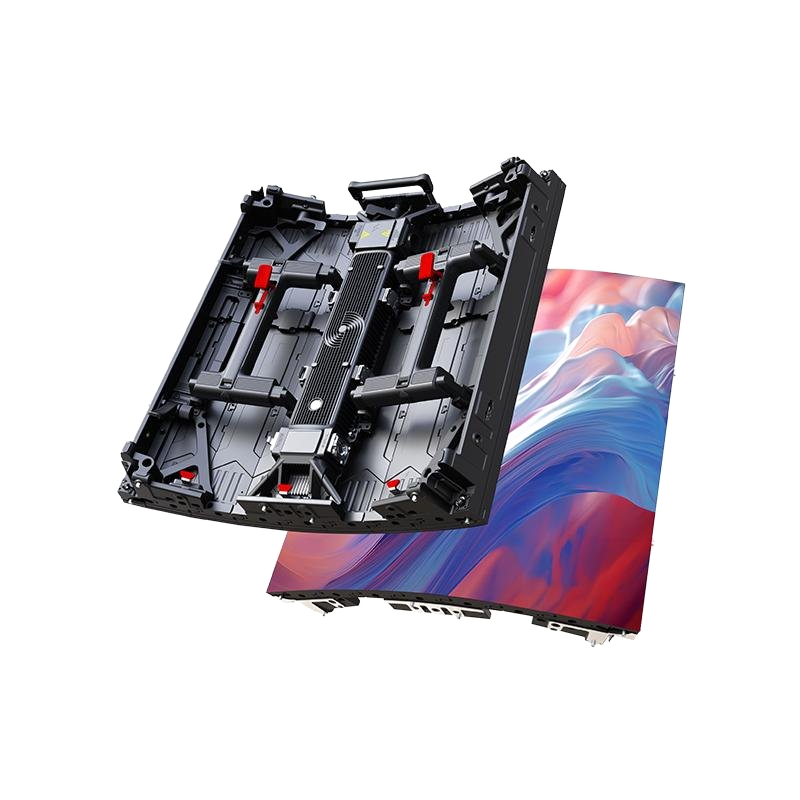

The AURA FLEX is a WALED LED video wall for rental & stage. Flexible rental modules for waves, curves and creative shapes – 4-in-1 mountable. Available pixel pitches: P1.9 bis P2.6. Ingress protection: IP65. Brightness: depending on variant 600 (Regular) / 800 (Nationstar) nits or 800 nits.
Welcome to the inner circle - the industry's smallest 45-degree outer angle.

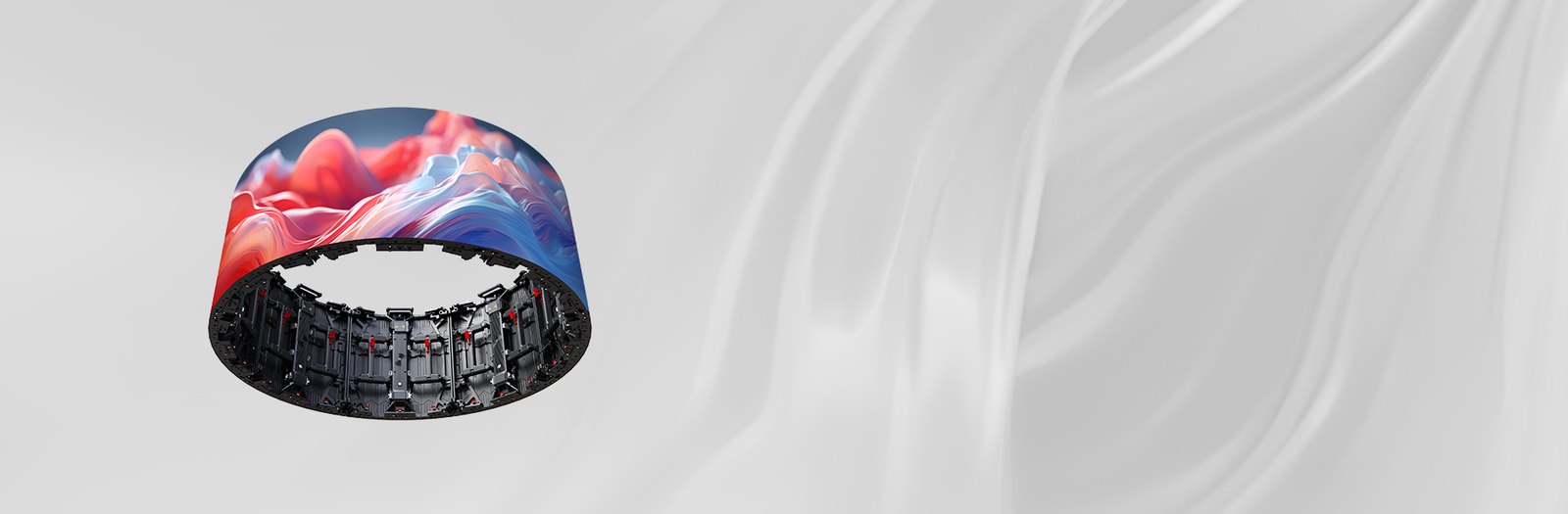

A multifunction handle for bending up to plus/minus 45 degrees supports creative installations at varying angles. With just 8 modules you can form a complete circle just 1.2 m in diameter.
Highlights
What sets the AURA FLEX apart
Perfect curve

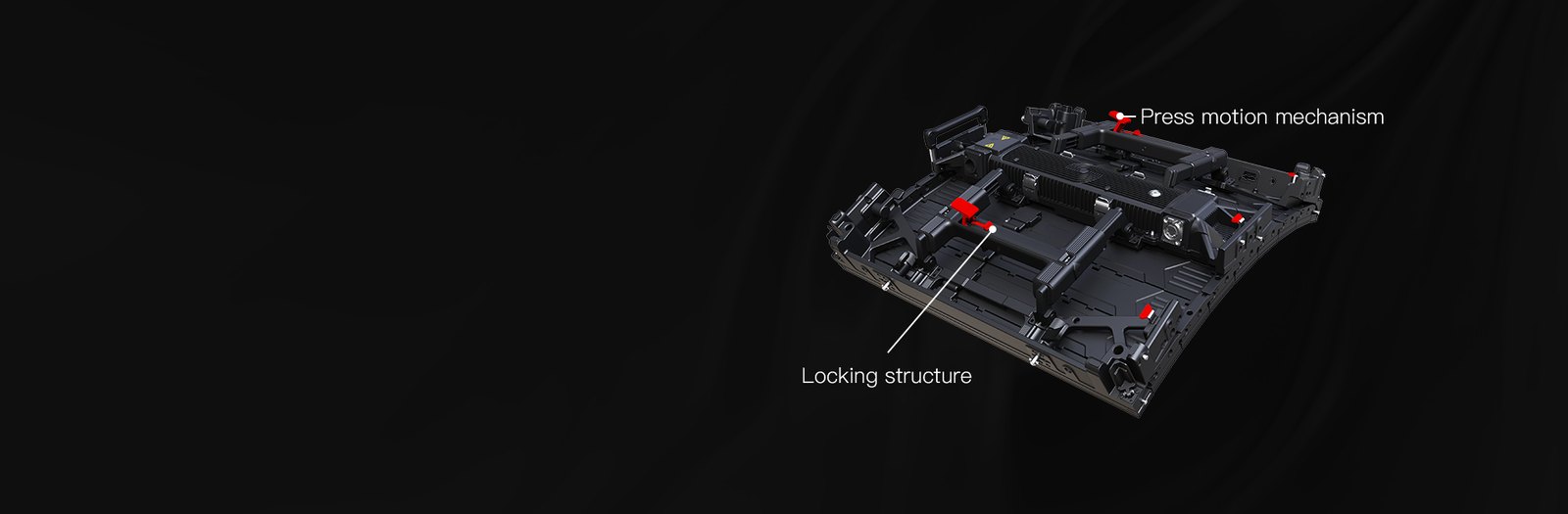

Seamless module transitions thanks to clever quick-locks that hold the transitions perfectly even under strong bending.
Visually outstanding
The pixel pitch, selectable from 1.9 to 3.9, is designed for the widest range of applications - with patented 4-in-1 mini-chip technology.
High contrast
High contrast ratio up to 8000:1 and high refresh rate up to 3840 Hz, minimising the moire effect on camera.
Compatible? YES!
Combine all rental products freely with one another - everything fits!
600 (Regular) / 800 (Nationstar) nits
Peak brightness
3840 Hz
Refresh rate
IP65
Protection
Technical specifications
AURA FLEX – Technical specifications
| Parameter | P1.9 Curve | P2.6 Curve |
|---|---|---|
| Pixel pitch (mm) | 1,9 | 2,6 |
| LED type | SMD 1515 (Nationstar / Regular) | SMD 1515 |
| Panel size (mm) | 500 × 500 | 500 × 500 |
| Panel material | Druckguss-Aluminium mit Eckschutz | Druckguss-Aluminium mit Eckschutz |
| Modules per panel | 4 (bzw. 4 bei Flexible) | 1 |
| Curving | Konkav/konvex anpassbar | Konkav/konvex anpassbar |
| Protection (IP) | IP65 | IP65 |
| Brightness (nits) | 600 (Regular) / 800 (Nationstar) | 800 |
| Refresh rate (Hz) | 3840 | 3840 |
| Maintenance | Rück (Magnetic Tool) | Rück (Magnetic Tool) |
| Tool | Magnetisches Servicetool (Standard) | Magnetisches Servicetool (Standard) |
| Lifespan (hrs) | 100.000 | 100.000 |
| Control system | Novastar VX16S + Receiving Card | Novastar VX16S + Receiving Card |
Learn more
Background & technology
Related products
More systems in the same category
AURA FLEX OUTDOOR
Weatherproof variant of the Aura Flex line for open-air events and outdoor touring.
View product
AURA CUBE
Cabinets for cubes, columns and 3D installations – striking eye-catchers for trade shows and retail.
View productInterested in the AURA FLEX?
Configure your project now in minutes – instant and non-binding.
Configure your LED wall
FAQ
Frequently asked questions about AURA FLEX
What is the AURA FLEX suitable for?
A multifunction handle for bending up to plus/minus 45 degrees supports creative installations at varying angles. With just 8 modules you can form a complete circle just 1.2 m in diameter.
What pixel pitch does the AURA FLEX have?
The AURA FLEX is available with pixel pitches P1.9, P2.6. Which pitch suits your project depends on the viewing distance: as a rule of thumb, the pitch in millimetres roughly equals the minimum viewing distance in metres. WALED explains this in detail at www.ledwalls.de/pixel-pitch-erklaert.
What ingress protection does the AURA FLEX have?
The AURA FLEX is specified with ingress protection IP65. WALED explains what the individual IP ratings mean and which rating is required for indoor, shop window, outdoor or coastal locations at www.ledwalls.de/ip-schutzklassen-erklaert.
How bright is the AURA FLEX?
The AURA FLEX reaches depending on variant 600 (Regular) / 800 (Nationstar) nits or 800 nits. Whether this suffices for your location depends on ambient light: 600 to 1,200 nits in a conference room, 1,500 to 2,500 nits in a lobby, 3,500 to 5,000 nits outdoors in shade and 6,000 nits or more in direct sunlight.
What are the AURA FLEX cabinet dimensions?
Per data sheet – Panel size (mm): 500 × 500. Cabinet dimensions and weight form the basis for structural design, substructure, installation planning and freight calculation. WALED handles the design during project planning.
Is the AURA FLEX camera-ready?
The AURA FLEX operates at a refresh rate of 3.840 Hz. For context: 1,920 Hz already looks smooth to the human eye, camera productions in rental and live work typically need 3,840 Hz, and TV studio, film production and xR stages need 7,680 Hz.
Can I rent or buy the AURA FLEX?
The AURA FLEX belongs to WALED's rental line and can be hired by the day or per project; purchase is also possible. WALED VIDEOWALLS GmbH delivers, installs and services throughout Germany from Duisburg. Request a non-binding quote via the LED wall configurator at www.ledwalls.de/konfigurator or the contact form at www.ledwalls.de/kontakt.
