CONFERENCE ALPHA
Plug-and-play LED wall for conference and meeting rooms – brilliant, quiet and ready to go.
View productHome / Conference & POS / VUEX ONE
All-in-one
VUEX ONE
The all-in-one LED solution for modern workplaces.
All-in-one conferencing display in 108", 135" and 163" – one power cable, switch on, present. With touch, Android 13 and wireless screen sharing.
Pixel Pitch 0.7 mmPixel Pitch 0.9 mmPixel Pitch 1.2 mmPixel Pitch 1.5 mm
In brief
VUEX ONE is the all-in-one LED conferencing display by WALED Videowalls in 108", 135" and 163" (custom sizes up to 260"). COB or MIP technology with pixel pitches from 0.7 to 1.5 mm, 600 – 1,000 nits, 20-point multi-touch, Android 13, wireless screen sharing. One power cable is all it needs – mobile stand or 41 mm slim wall mount. Protection: IP20.
The all-in-one LED solution for modern workplaces.
VUEX ONE combines TV, computer, tablet, projector, speakers and screen in one device: interactive all-in-one LED display with COB or MIP technology, 20-point multi-touch, whiteboard, split-screen and wireless casting from up to 9 sources. A single power cable is all it needs – on the mobile stand or wall-mounted, custom sizes from 108" to 260" on request.
Highlights
What sets the VUEX ONE apart
Brilliant & ultra shock-proof – COB / MIP
Fully encapsulated COB surface – sealed, impact-resistant and wipeable. Pitches from 0.7 mm, MIP variant with 100,000:1 contrast.
One cable, one button
A single power cable, one-button start, operation via touch, remote or app – no equipment room, no distribution cabinet.
Interactive & mobile
20-point multi-touch (±1 mm, ≤8 ms), whiteboard and annotation; mobile stand on castors or slim wall mount just 41 mm deep.
Wireless & split-screen
Wireless screen sharing from PC, phone and tablet – 4 to 9 sources on screen at once, plus video conferencing with face-following.
600 – 1,000 nits
Peak brightness
up to 7,680 Hz
Refresh rate
up to 22 bit
Greyscale
IP20
Protection
1 power cable
Hook-up

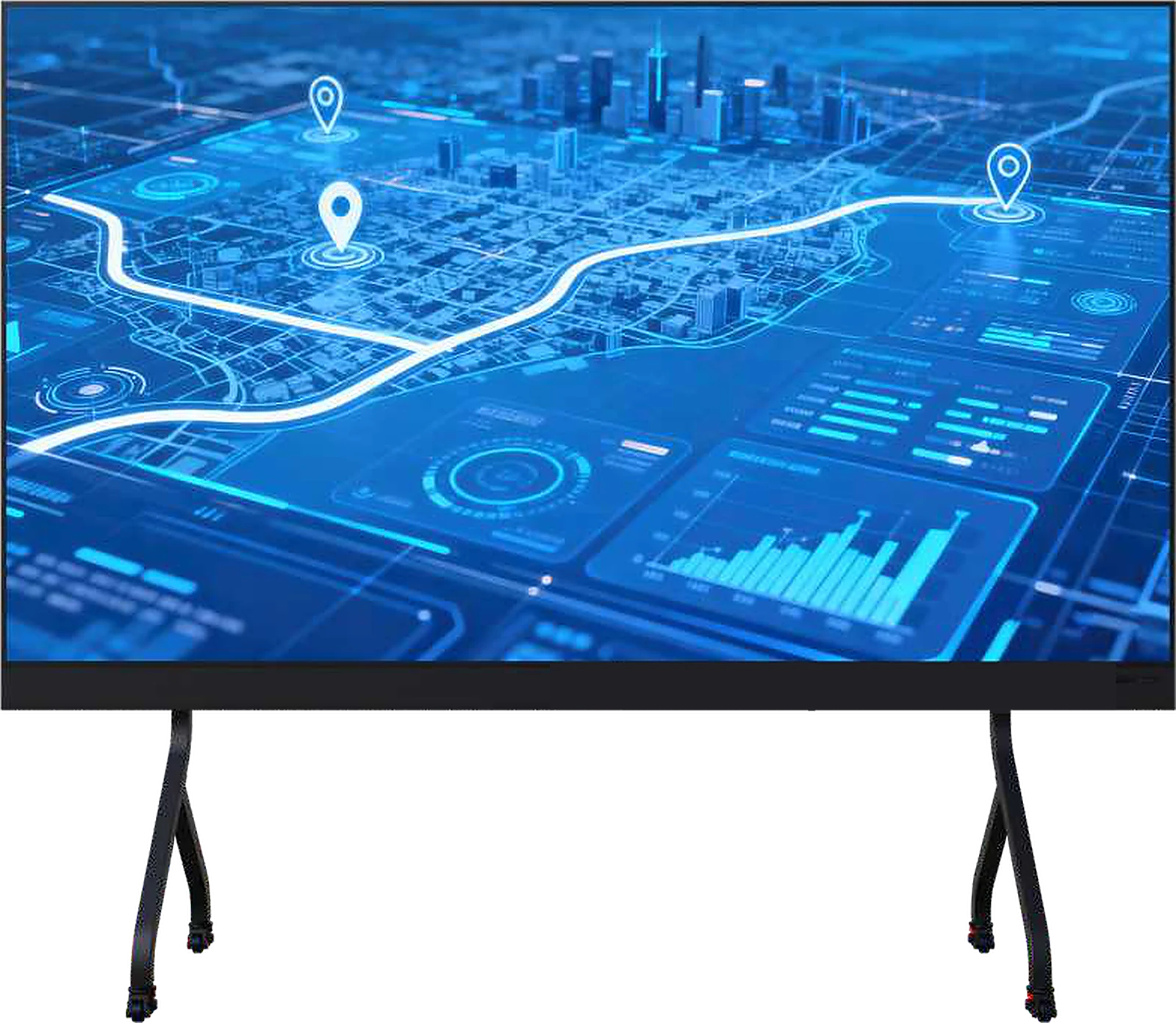

One power cable. One button. Meeting on.
VUEX ONE combines TV, computer, tablet, projector, speakers and screen in one device. No equipment room, no cabinet, no cabling marathon: plug in the power cable, press the button, present – via touch on the screen, remote control or app.
- 20-point multi-touch (±1 mm, ≤8 ms) with whiteboard and annotation
- Android 13 · 8 GB RAM · 128 GB storage – apps run on the device itself
- Mobile stand on castors or wall mount just 41 mm deep

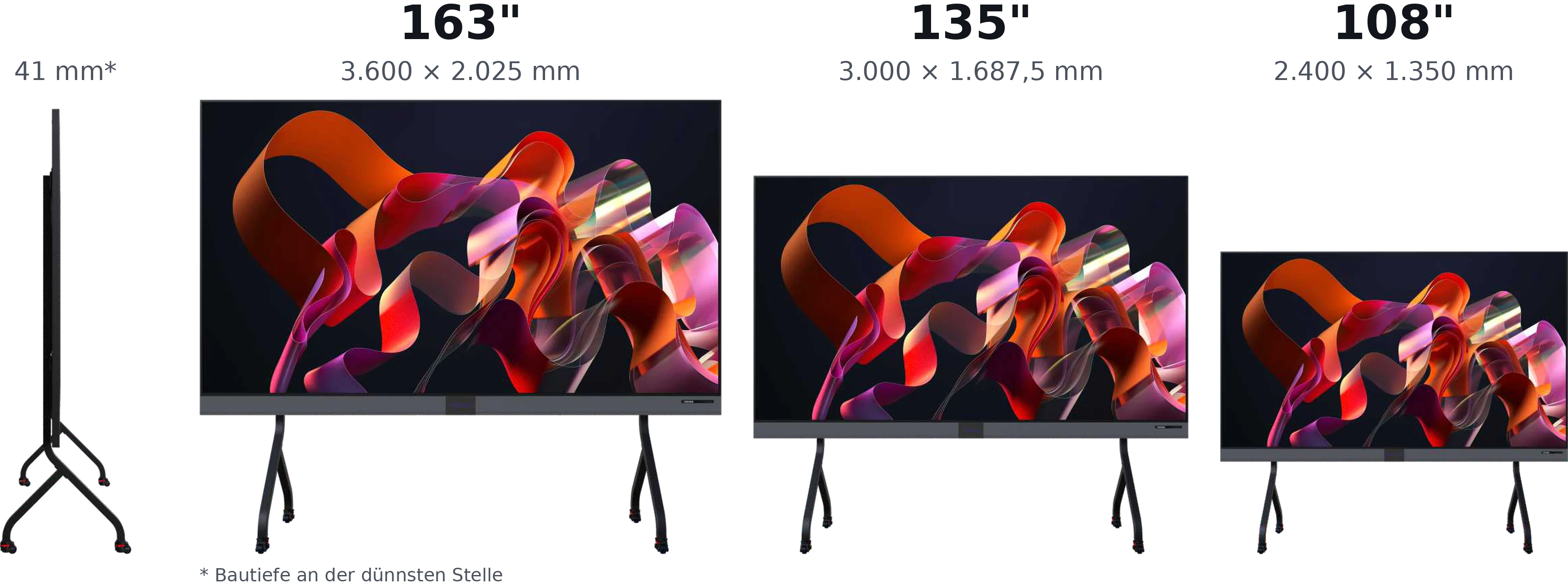

Three sizes – as slim as a picture frame
From 108" to 135" and 163" screen diagonal, custom sizes up to 260" on request. The side view shows why VUEX ONE fits any room: on the mobile stand the screen rolls from room to room; wall-mounted it protrudes just 41 mm at its slimmest point.
- 108": 2,400 × 1,350 mm · 135": 3,000 × 1,687.5 mm · 163": 3,600 × 2,025 mm
- Pixel pitches 0.7 / 0.9 / 1.2 / 1.5 mm – COB or MIP
- Up to 3,840 × 2,160 (4K) native resolution
Wireless casting – from any device in the room
Laptop, smartphone and tablet cast their screen wirelessly – no hunting for adapters before the meeting. In split-screen, 4 to 9 sources sit side by side simultaneously, ideal for comparisons, workshops and video conferences with face-following camera. If you prefer cables: two HDMI inputs and one HDMI output, three USB 3.0, two USB 2.0 and two gigabit network ports are ready.
- Wireless screen sharing from PC, smartphone and tablet
- Split-screen with 4 – 9 sources on screen at once
- Wi-Fi 2.4 / 5 GHz · Bluetooth · 2× RJ45 (1 Gbit/s) · 2× HDMI in · HDMI out

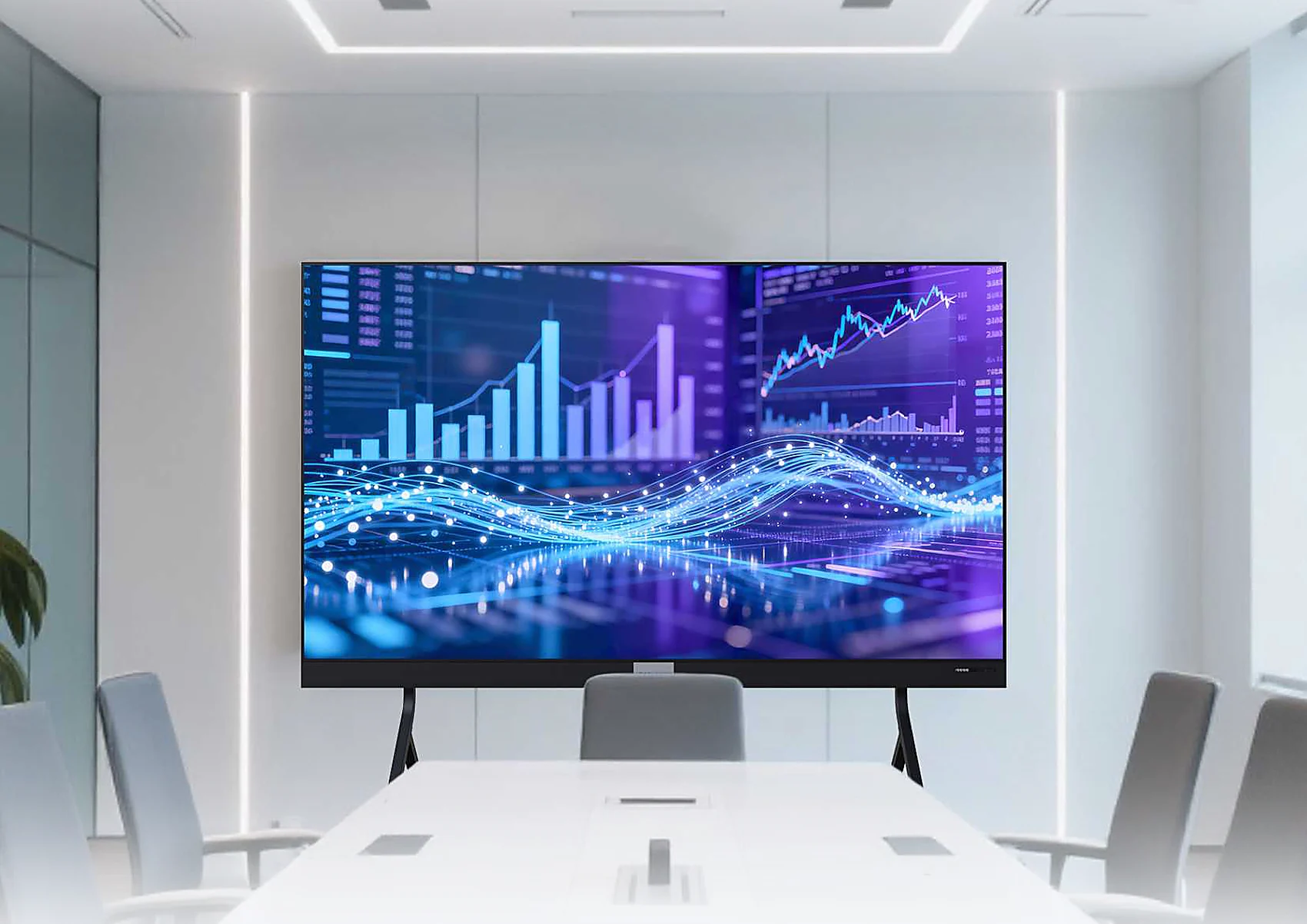

Made for hybrid meetings
Array
- Hybrid: video conferencing with face-following, split-screen for room + remote
- One device instead of a tech chain – fewer points of failure, faster start
- 600 – 1,000 nits, contrast up to 100,000:1 (MIP), silent operation
Technical specifications
VUEX ONE – Technical specifications
| Parameter | VUEX ONE 108" | VUEX ONE 135" | VUEX ONE 163" |
|---|---|---|---|
| Screen diagonal | 108" (16:9) | 135" (16:9) | 163" (16:9) |
| Active area (mm) | 2.400 × 1.350 | 3.000 × 1.687,5 | 3.600 × 2.025 |
| Pixel pitch (mm) | 0,7 / 0,9 / 1,2 / 1,5 | 0,7 / 0,9 / 1,2 / 1,5 | 0,9 / 1,2 / 1,5 |
| LED technology | COB · MIP (bei P0.9) | COB · MIP (bei P0.9) | COB · MIP (bei P0.9) |
| Native resolution (max.) | 3.072 × 1.728 | 3.840 × 2.160 | 3.840 × 2.160 |
| Refresh rate (Hz) | 3.840 – 7.680 | 3.840 – 7.680 | 3.840 – 7.680 |
| Gray scale (bit) | 13 – 22 | 13 – 22 | 13 – 22 |
| Brightness (nits) | 600 – 1.000 | 600 – 1.000 | 600 – 1.000 |
| Contrast ratio | 20.000:1 · MIP 100.000:1 | 20.000:1 · MIP 100.000:1 | 20.000:1 · MIP 100.000:1 |
| Viewing angle (H/V) | 165° / 165° · MIP 175° / 175° | 165° / 165° · MIP 175° / 175° | 165° / 165° · MIP 175° / 175° |
| Avg. power (W) | 270 – 690 | 420 – 1.080 | 610 – 1.560 |
| Max. power (W) | 810 – 2.080 | 1.270 – 3.240 | 1.820 – 4.670 |
| Overall size wall mount (mm) | 2.434 × 1.493 × 41 | 3.034 × 1.830 × 41 | 3.634 × 2.168 × 41 |
| Overall size mobile stand (mm) | 2.434 × 2.188 × 780 | 3.034 × 2.525 × 780 | 3.634 × 2.863 × 780 |
| Weight wall mount (kg) | 82 – 87 | 126 – 134 | 175 – 186 |
| Weight with stand (kg) | 116 – 121 | 175 – 183 | 234 – 245 |
| Installation | Wandmontage / mobiler Standfuß | Wandmontage / mobiler Standfuß | Wandmontage / mobiler Standfuß |
| Touch | 20 Punkte · ±1 mm · ≤8 ms | 20 Punkte · ±1 mm · ≤8 ms | 20 Punkte · ±1 mm · ≤8 ms |
| Processor / GPU | 4× Cortex-A76 + 4× Cortex-A55 · Mali-G610 | 4× Cortex-A76 + 4× Cortex-A55 · Mali-G610 | 4× Cortex-A76 + 4× Cortex-A55 · Mali-G610 |
| Operating system | Android 13 | Android 13 | Android 13 |
| Memory | 8 GB DDR4 · 128 GB | 8 GB DDR4 · 128 GB | 8 GB DDR4 · 128 GB |
| Network | WLAN 2,4 / 5 GHz · Bluetooth · 2× RJ45 (1 Gbit/s) | WLAN 2,4 / 5 GHz · Bluetooth · 2× RJ45 (1 Gbit/s) | WLAN 2,4 / 5 GHz · Bluetooth · 2× RJ45 (1 Gbit/s) |
| Ports | 2× HDMI In · HDMI Out · 3× USB 3.0 · 2× USB 2.0 · Touch · RS232 · SPDIF · 3,5 mm | 2× HDMI In · HDMI Out · 3× USB 3.0 · 2× USB 2.0 · Touch · RS232 · SPDIF · 3,5 mm | 2× HDMI In · HDMI Out · 3× USB 3.0 · 2× USB 2.0 · Touch · RS232 · SPDIF · 3,5 mm |
| Power supply | AC 100 – 240 V | AC 100 – 240 V | AC 100 – 240 V |
| Operating temperature | -20 bis +50 °C | -20 bis +50 °C | -20 bis +50 °C |
| Operating humidity | 10 – 95 % rF | 10 – 95 % rF | 10 – 95 % rF |
| Custom sizes | 108" – 260" auf Anfrage | 108" – 260" auf Anfrage | 108" – 260" auf Anfrage |
* * Installation depth 41 mm at the slimmest point.
Learn more
Background & technology
Related products
More systems in the same category
CONFERENCE RATIO
True 16:9 conference walls with 600 × 337.5 mm and 1000 × 562.5 mm cabinets – pixel-perfect for Full HD, 4K and 8K, quick to install and razor-sharp.
View product
CONFERENCE PUBLIC
Impact-proof indoor LED wall P3.91 with black LEDs, 1,000 nits and safety-wire retention – ideal for sports halls, showrooms and advertising surfaces from 6 sqm. Available from stock.
View productInterested in the VUEX ONE?
Configure your project now in minutes – instant and non-binding.
Configure your LED wall
FAQ
Frequently asked questions about VUEX ONE
What is the VUEX ONE suitable for?
VUEX ONE combines TV, computer, tablet, projector, speakers and screen in one device: interactive all-in-one LED display with COB or MIP technology, 20-point multi-touch, whiteboard, split-screen and wireless casting from up to 9 sources. A single power cable is all it needs – on the mobile stand or wall-mounted, custom sizes from 108" to 260" on request.
What pixel pitch does the VUEX ONE have?
The VUEX ONE is available with pixel pitches P0.7, P0.9, P1.2 and P1.5. Which pitch suits your project depends on the viewing distance: as a rule of thumb, the pitch in millimetres roughly equals the minimum viewing distance in metres. WALED explains this in detail at www.ledwalls.de/pixel-pitch-erklaert.
What ingress protection does the VUEX ONE have?
The VUEX ONE is specified with ingress protection IP20 (Indoor). WALED explains what the individual IP ratings mean and which rating is required for indoor, shop window, outdoor or coastal locations at www.ledwalls.de/ip-schutzklassen-erklaert.
How bright is the VUEX ONE?
The VUEX ONE reaches 600 – 1,000 nits. Whether this suffices for your location depends on ambient light: 600 to 1,200 nits in a conference room, 1,500 to 2,500 nits in a lobby, 3,500 to 5,000 nits outdoors in shade and 6,000 nits or more in direct sunlight.
What are the VUEX ONE cabinet dimensions?
VUEX ONE is a closed complete unit: overall wall-mount size 2,434 × 1,493 × 41 mm (108"), 3,034 × 1,830 × 41 mm (135") or 3,634 × 2,168 × 41 mm (163"); 780 mm deep with the mobile stand. Weight 82 – 186 kg (wall mount) or 116 – 245 kg (stand) depending on size.
Is the VUEX ONE camera-ready?
The VUEX ONE operates at a refresh rate of 3,840 – 7,680 Hz. For context: 1,920 Hz already looks smooth to the human eye, camera productions in rental and live work typically need 3,840 Hz, and TV studio, film production and xR stages need 7,680 Hz.
Can I rent or buy the VUEX ONE?
The VUEX ONE is available both for purchase and for hire by the day or per project. WALED VIDEOWALLS GmbH delivers, installs and services throughout Germany from Duisburg. Request a non-binding quote via the LED wall configurator at www.ledwalls.de/konfigurator or the contact form at www.ledwalls.de/kontakt.
