7

Indoor · Conference Ratio P1.875 · 4.20 × 2.36 m

BWI – Verwaltungsgebäude Berlin

Berlin

Permanently installed LED wall for presentations, exhibitions and workshops in the public area

For BWI GmbH, the IT systems house of the German Armed Forces (Bundeswehr), WALED Videowalls realised a permanently installed LED wall from our Conference Ratio series in the new administration building in Berlin. Placed in the public area, it is now the central medium for the entire floor – for presentations, exhibitions and workshops. Across 4.20 × 2.36 m, 49 cabinets in 16:9 format with a 1.875 mm pixel pitch deliver a resolution of 2,240 × 1,260 pixels – more than Full HD and razor-sharp even at close range. The cabinets sit on a black substructure particularly close to the wall, blending calmly into the architecture. The wall is driven by a NovaStar VX600, which flexibly switches several sources – right down to the speaker's laptop on stage – onto the screen. Our team handled installation, calibration, commissioning and training in two days in September 2026; the video shows the journey from the substructure to the first image. We are proud that BWI, the IT systems house of the Bundeswehr, relies on WALED technology – it is both confirmation and motivation for us.

Backstage Service GmbH – Public Viewing München 1

Backstage Service GmbH – Public Viewing München 2

Backstage Service GmbH – Public Viewing München 3

Backstage Service GmbH – Public Viewing München 4

Backstage Service GmbH – Public Viewing München 5

5

Rental · WALED AURA PRO P3.9 · 5.50 × 3.00 m = 16.5 sqm

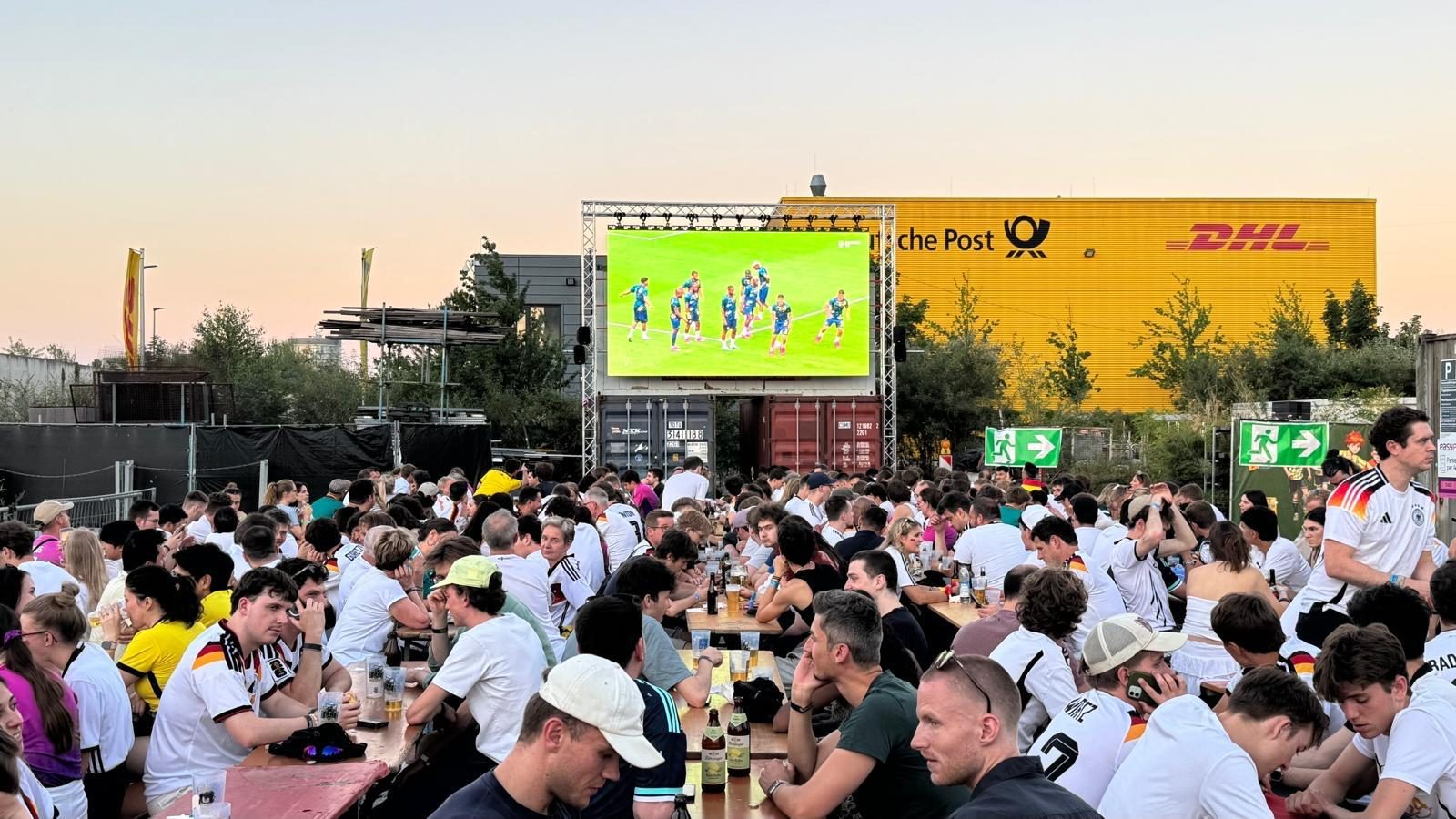

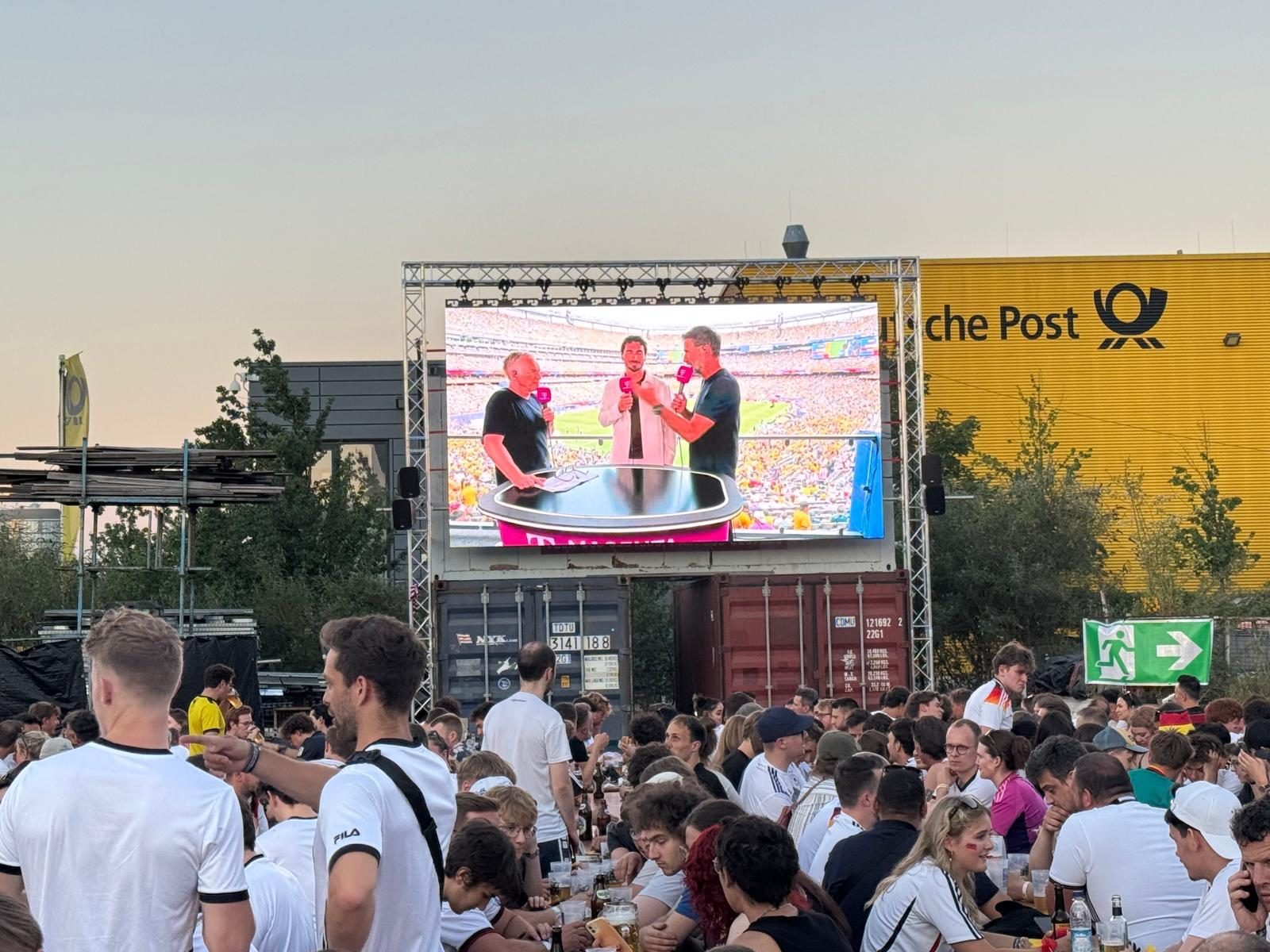

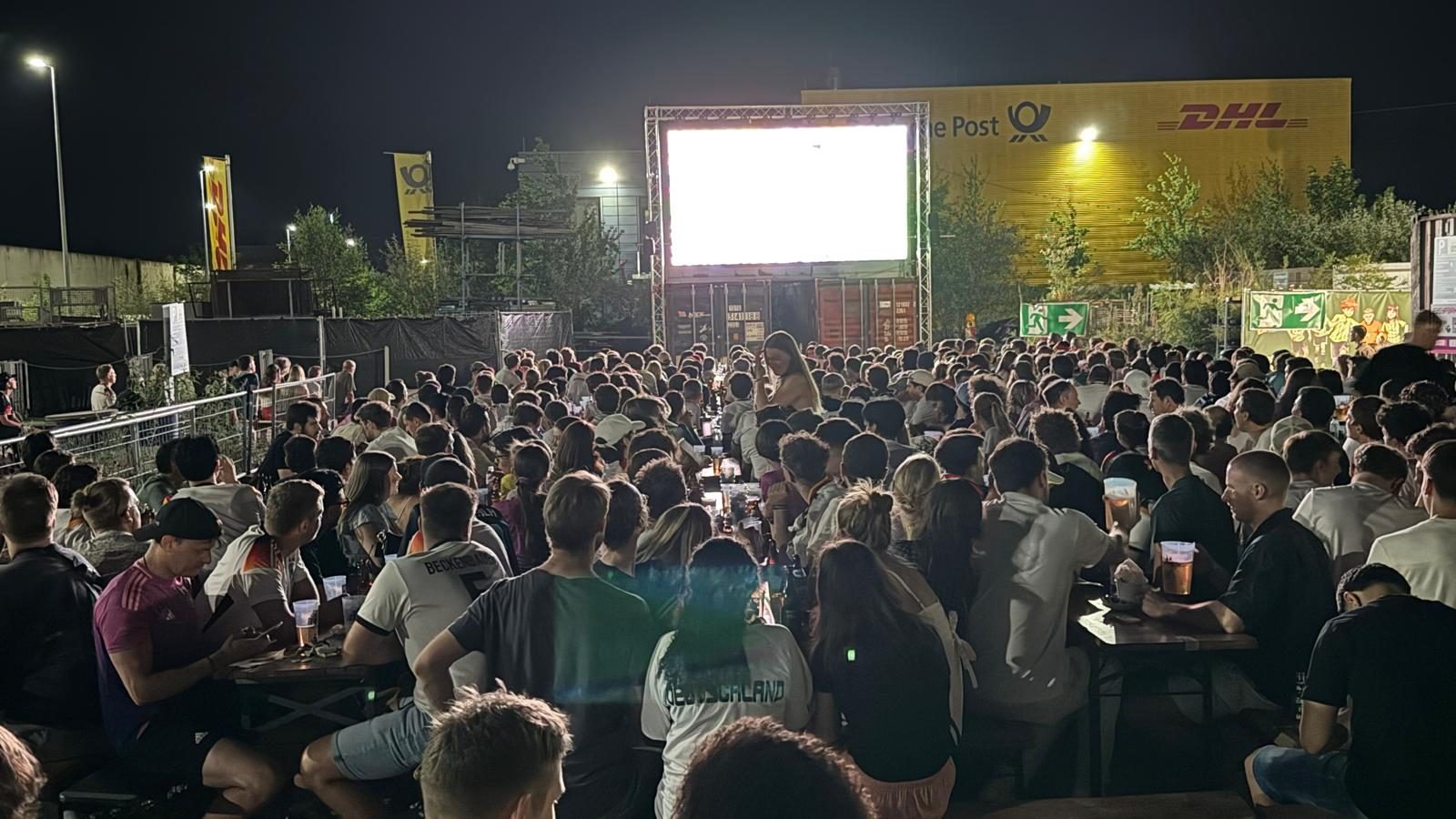

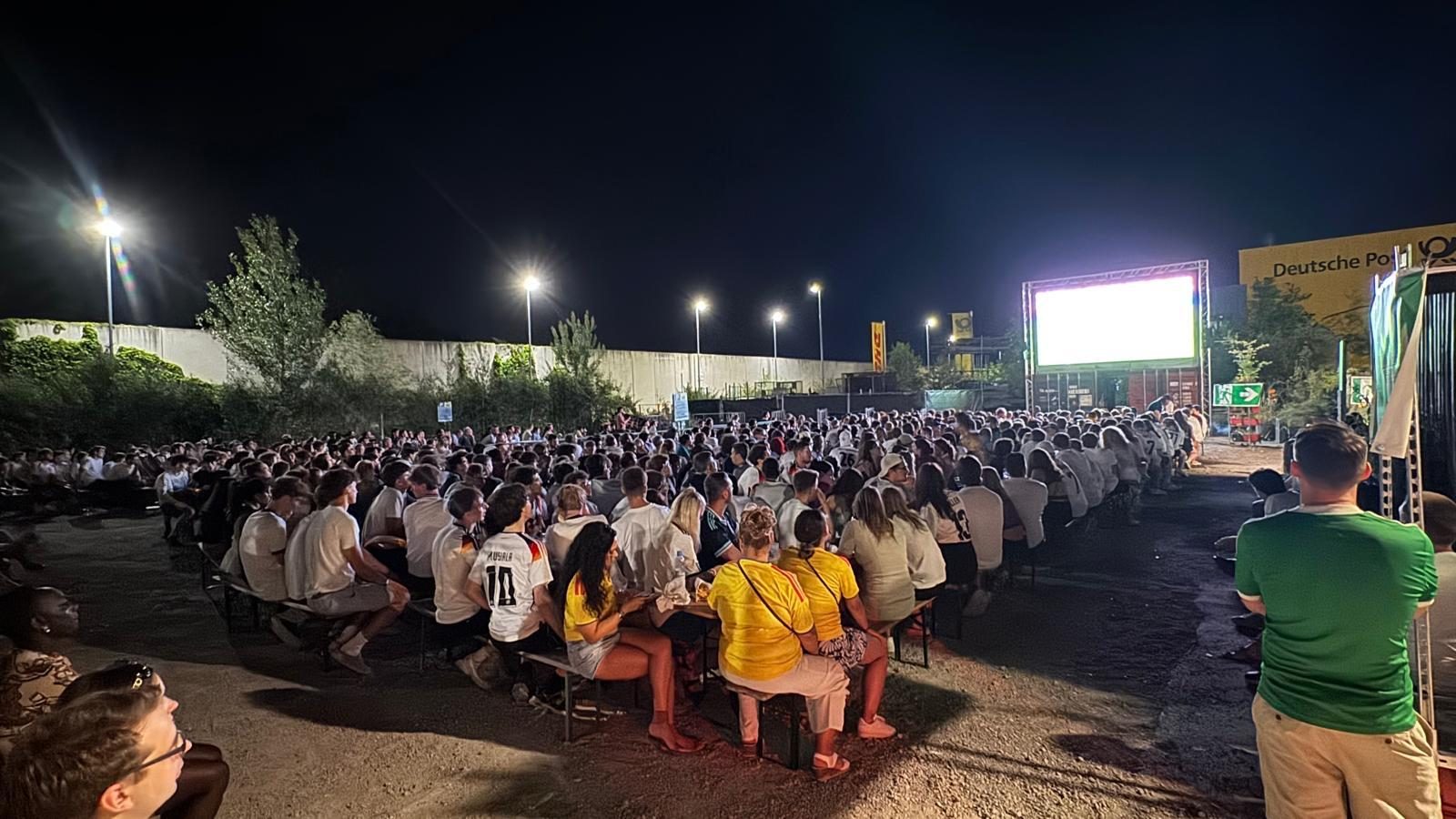

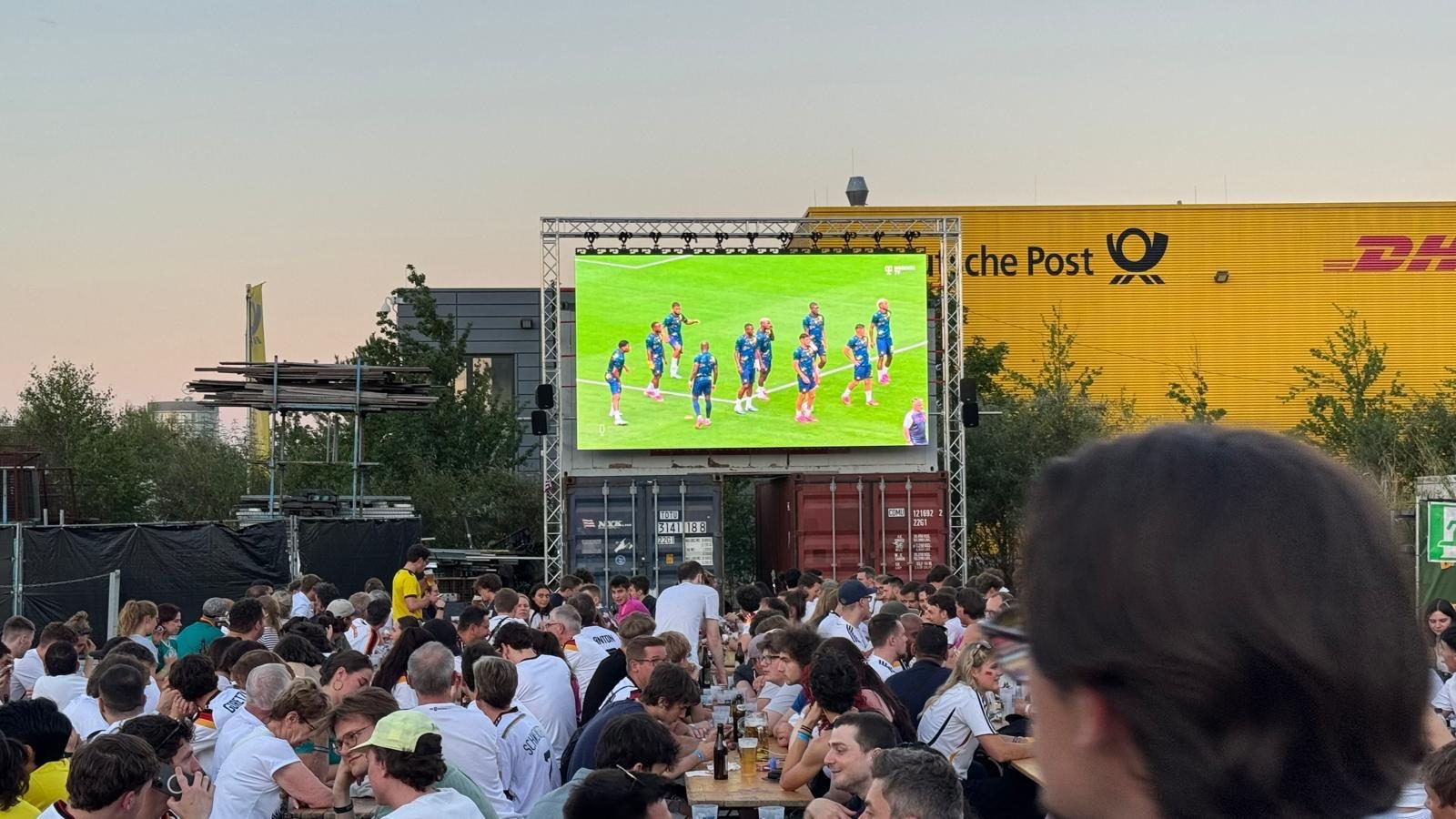

Backstage Service GmbH – Public Viewing München

München

16.5 sqm Black-LED rental wall with NovaStar VX600 Pro – in use in front of thousands of spectators

For Backstage Service GmbH in Munich, WALED Videowalls supplied a complete AURA PRO rental wall with a 3.9 mm pixel pitch: 5.50 × 3.00 m of screen area, 16.5 sqm, built from 66 cabinets measuring 500 × 500 mm. That adds up to 1,408 × 768 pixels – over a million pixels that stay crisp even from a few metres away. The panels use Black LED technology: switched off, the surface stays deep black, which noticeably lifts contrast and colour depth in daylight as well as after sunset. The wall is driven by a NovaStar VX600 Pro – an all-in-one controller with six LED outputs for up to 3.9 million pixels, two OPT outputs (10G) and input resolutions up to 4K × 2K at 60 Hz via HDMI 2.0, plus two HDMI 1.3 inputs and one 3G-SDI input. At 1,408 × 768 pixels the wall uses only a fraction of that capacity – the system can be extended without additional control hardware. The cabinets on the 500 mm grid connect tool-free via the quicklocks on their sides: decisive when a wall has to stand one day and be back in the truck the next. Handover took place on 19 June 2026 – since then the wall has been running at public viewing and event productions in and around Munich.

3 clips

Outdoor · WALED PYLON · 3.50 × 2.50 m double-sided

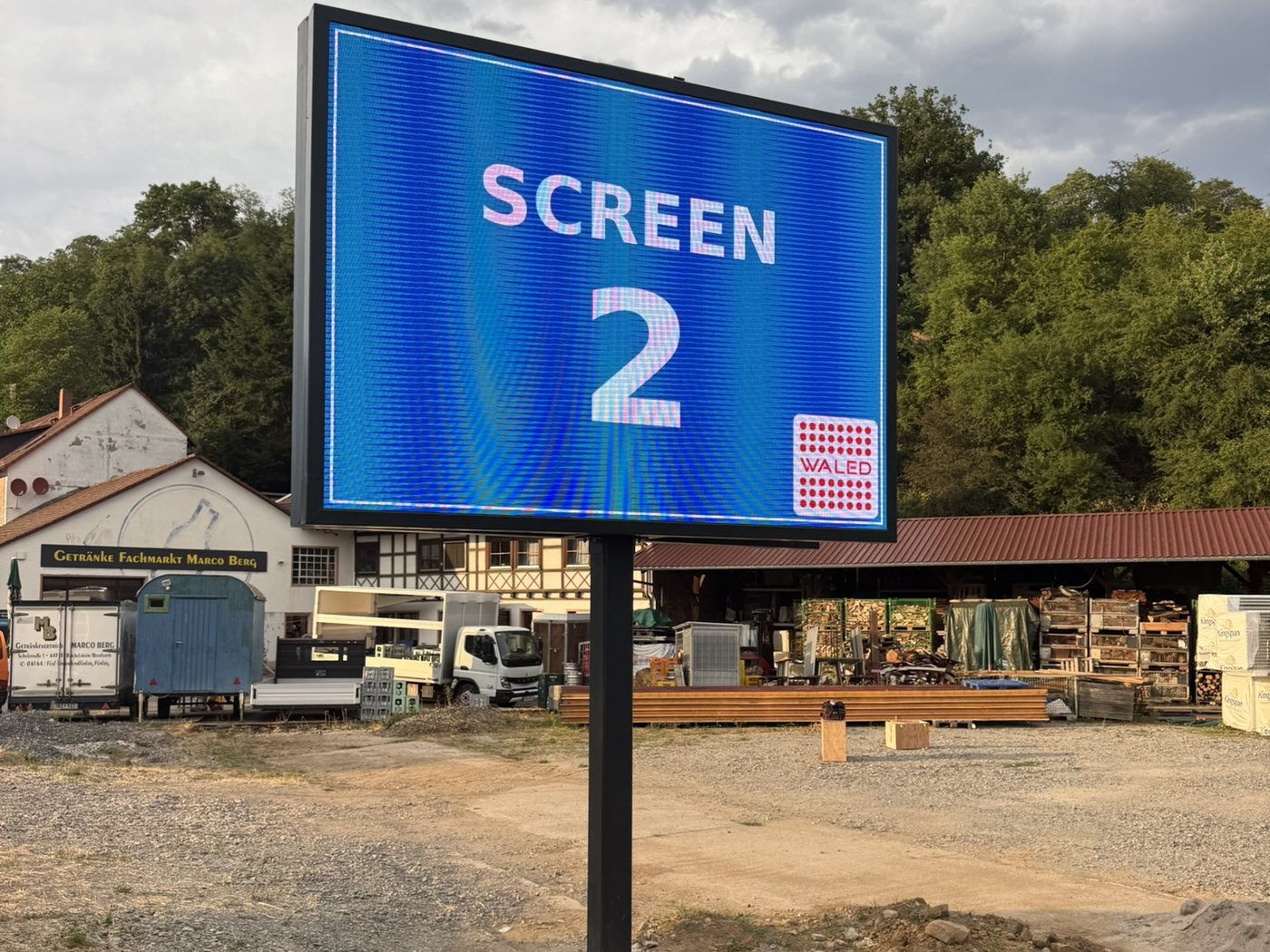

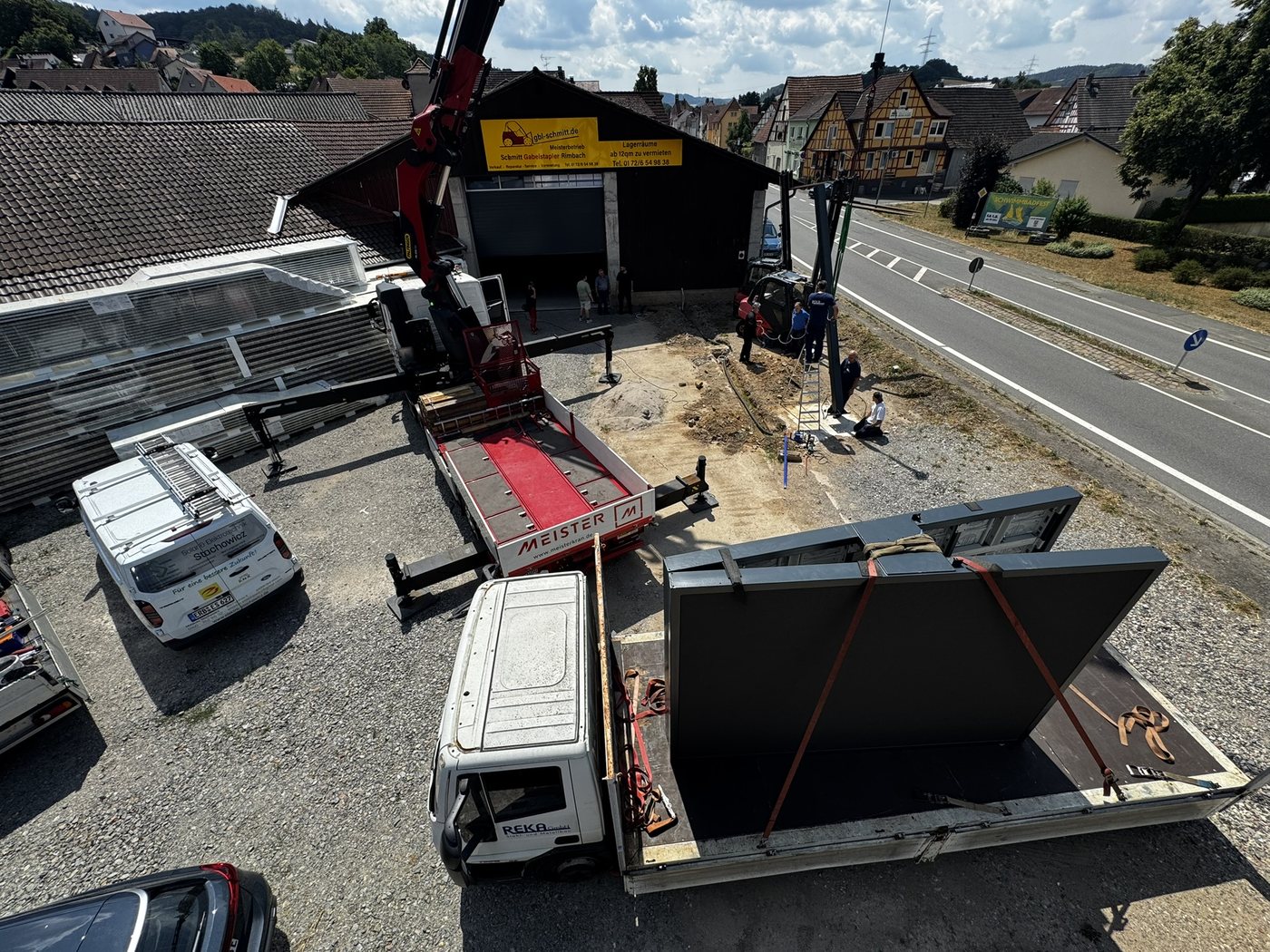

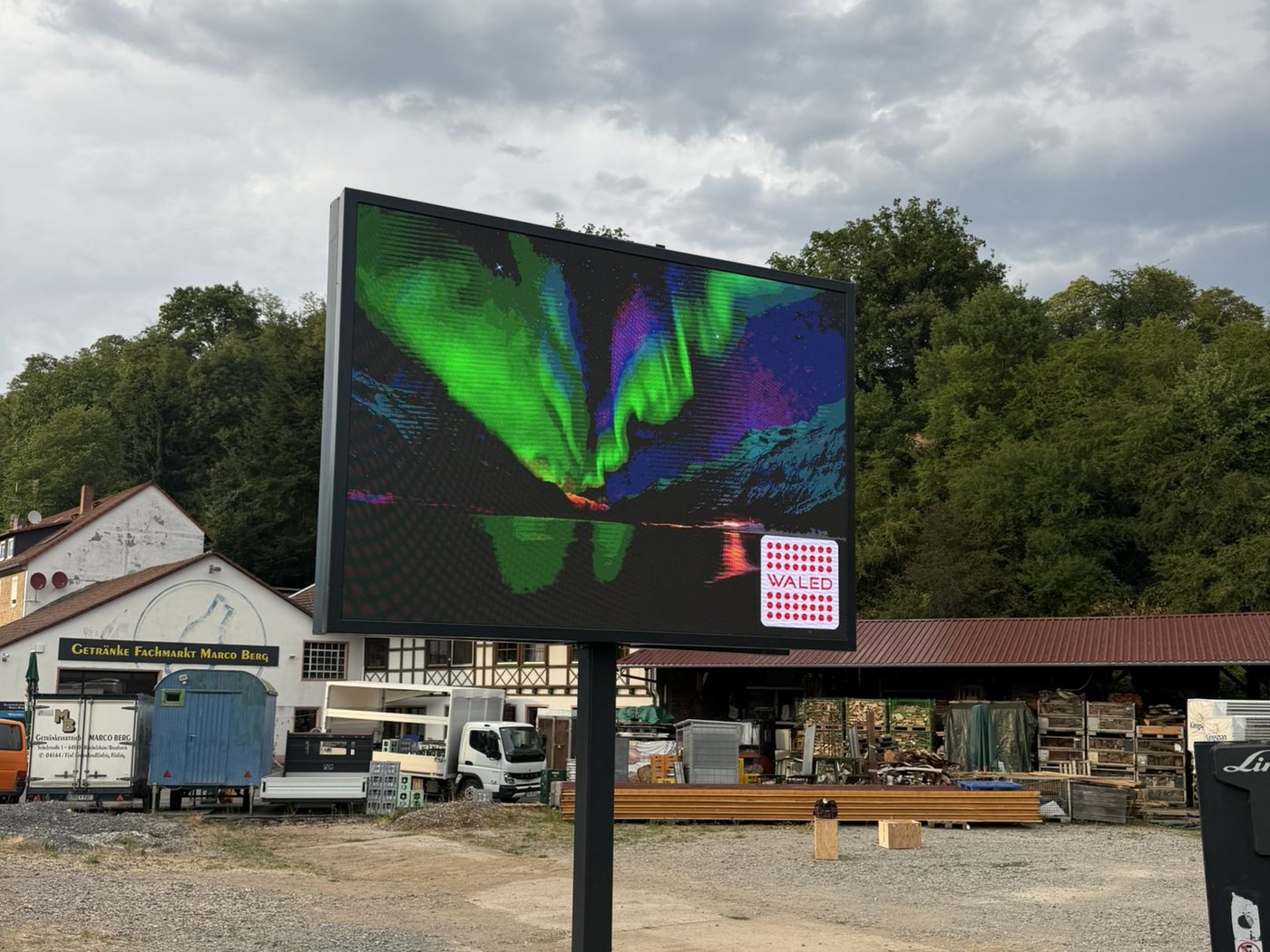

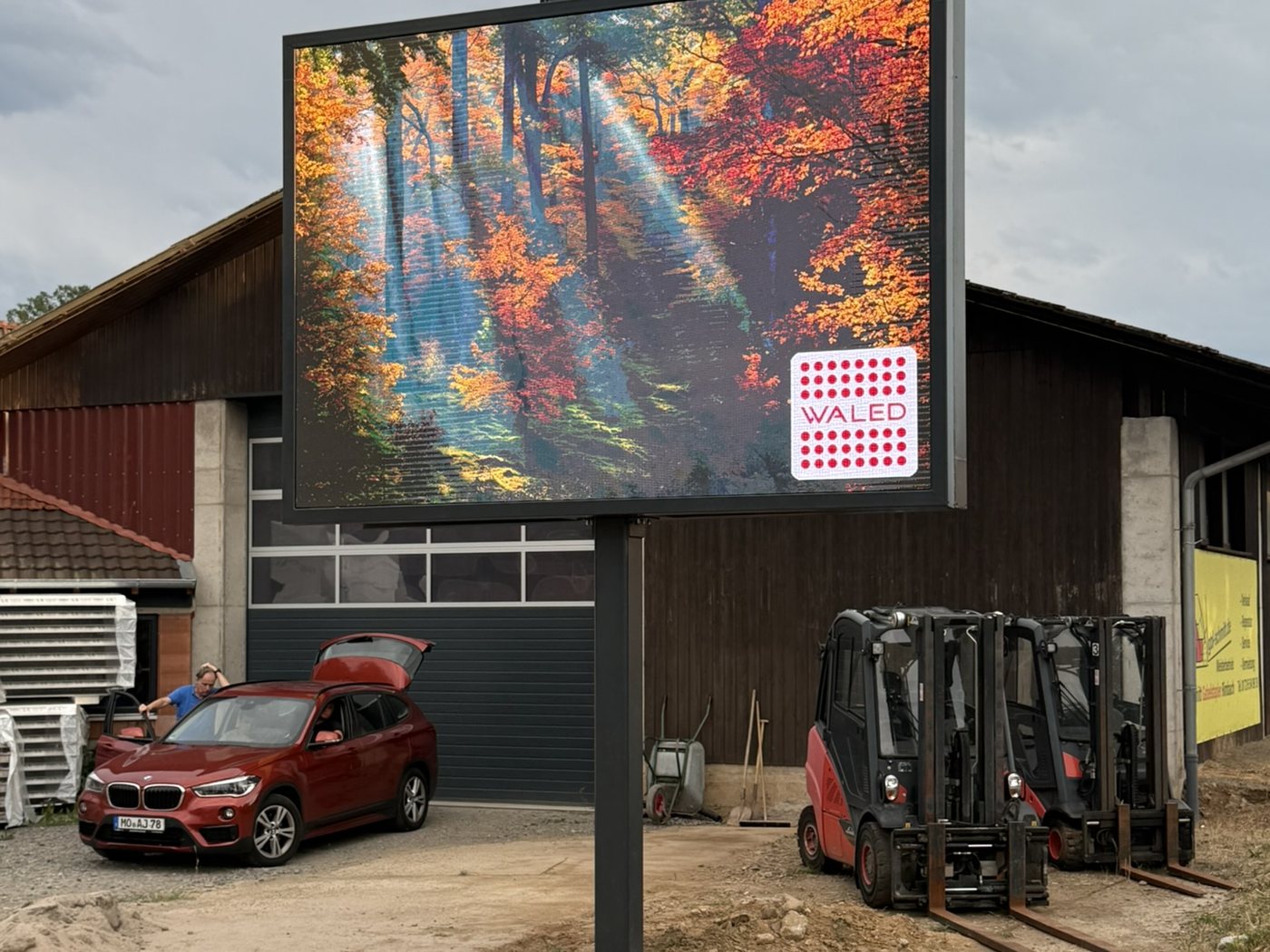

Gemmion – beidseitiger LED-Pylon

Hessen

Double-sided DOOH advertising pylon with 8,000 nits – both sides driven separately

On a busy through road in Hesse, WALED Videowalls realised a double-sided LED advertising pylon in a bespoke format: two screens of 3.50 × 2.50 m each with a 4.81 mm pixel pitch and 728 × 520 pixels per side. At up to 8,000 nits the pylon stays razor-sharp even in bright sunshine, while a light sensor on each side adapts the brightness automatically – maximum brightness by day, glare-free at night. A special feature is the construction angled 10° horizontally: both screens face their respective direction of travel exactly, making them readable over a far longer stretch of road. The system is driven by two NovaStar Taurus TB50 media players – each side can be fed independently with its own content, playlists and schedules. From the foundation and bolted mast base to the crane installation of the pre-assembled cabinets, fine alignment from the aerial work platform, geometry test, calibration and commissioning, the entire installation came from a single source.

3 clips

Outdoor · Signature series · 4.80 × 2.24 m

Campingplatz Grav-Insel

Wesel

LED welcome screen at Germany's largest campsite

On the Grav-Insel near Wesel – with around 2.4 million m² and over 2,000 pitches the largest campsite in Germany – WALED Videowalls integrated an outdoor LED wall from the Signature series directly into the gable façade of the reception building. Measuring 4.80 m wide × 2.24 m high with a 6.67 mm pixel pitch, it delivers a large-format, ultra-bright yet highly energy-efficient image. As a welcome and information screen, it greets thousands of guests every day: from a personal welcome message to date, time and event notices and brilliant visual content – clearly legible even in daylight. The installation shows our team's full craftsmanship: the fully pre-assembled screen was lifted off the low-loader by crane, then aligned and calibrated to the millimetre on the façade from the aerial work platform. Weatherproof, bright and high in contrast, the system blends into the striking Inselshop building and turns the recreation centre's reception into the first eye-catcher for every arriving camper.

In grateful cooperation and engineered by

4 clips

Live · marquee tour · Curtain-Z transparent

Ois Easy – Live auf Tour

Bayern · deutschlandweit

Transparent Curtain-Z on the Ois Easy stage – marquees & festivals

Ois Easy is one of Bavaria's busiest party bands – festival marquees, Volksfeste, traditional evenings, private events: where Ois Easy plays, the vibe is guaranteed. For their new tour show, a WALED Curtain-Z was added to the rig: a transparent LED wall that drenches the stage in saturated colour and motion content while leaving the band, the musicians and the backline fully visible. Since 2024 the Curtain-Z has been a permanent part of the show – built up in minutes, robust, lightweight and truck-transportable.

8

Custom · 3D LED letter · semi-mobile

ZDF – Terra X

Mainz

Bespoke 3D LED letter “X” for ZDF

For ZDF – realised via the Bartenbach systems house in Mainz – WALED built a very special custom unit: a three-dimensional letter in the shape of the “X” from the flagship programme Terra X. Designed as a semi-mobile unit, it is built for trade shows, conferences and TV use. The technical finesse is in the detail: pixel-perfect, borderless LED modules combined with an extremely flat build that simultaneously houses the complete technology and the structural support required for the 2,600 × 2,600 mm construction. Finished in a custom RAL colour – the finishing touch on a fully bespoke solution.

7

Outdoor · Custom build · Reception centre

Obermann Logistik

Harz

Custom outdoor LED wall in the new visitor reception centre

At Obermann Logistik in the Harz region, WALED Videowalls planned and realised an outdoor LED wall together with the new visitor reception centre – a genuine custom build. Due to the special dimensions of 3,200 × 2,150 mm, the outdoor wall was individually engineered rather than drawn from a standard series. Integrated directly into the façade of the reception building, it welcomes visitors and customers with information, check-in guidance and brilliant content that stays clearly legible even in sunlight. From installing the final module to the finished screen, the result is a representative solution that perfectly complements the modern reception centre.

Video

Indoor · Conference Ratio · Full HD

Landtag NRW – SPD-Fraktion

Düsseldorf

Conference Ratio Full-HD LED wall in the parliamentary group area

For the SPD parliamentary group at the State Parliament of North Rhine-Westphalia in Düsseldorf, WALED Videowalls realised a Conference Ratio LED wall. At 3.60 m × 2.025 m, the fine-pitch Conference Ratio series delivers razor-sharp Full HD resolution (1920 × 1080 pixels, 1.875 mm pixel pitch) – ideal for presentations, live images and media content in the group area. From the final module to the finished image, the time-lapse shows the precise installation and calibration by our team. As the wall is used for the group's press statements, it is likely to appear on television soon – for which it is particularly well suited thanks to its high refresh rate: camera footage stays free of flicker and scan lines.

6

Outdoor · 100 m² · Signature 960

Theater am Marientor

Duisburg

Curved large-format LED installation for maximum visibility

WALED Videowalls equipped the façade of the Theater am Marientor in Duisburg with a state-of-the-art outdoor LED installation. Across roughly 100 m², our Signature 960 outdoor series delivers ultra-bright, brilliant image quality – even in direct sunlight. The curved structure was precisely matched to the architecture and, thanks to robust IP-rated modules, is built for reliable continuous outdoor operation. This project sets new standards for large-format LED solutions and turns the theatre into a visual highlight of the cityscape.

6

Outdoor pylon · 64 m² · Signature 960

Piron Metallbau Kleve

Kleve

Gigantic outdoor pylon for maximum impact

For Piron Metallbau Kleve, WALED Videowalls realised an impressive outdoor advertising pylon with a total area of 64 m² of LED. Split into two 32 m² screens, our Signature 960 outdoor series delivers razor-sharp imagery, extreme brightness and brilliant colours – perfectly visible at all times, even in direct sunlight. The robust, IP-rated construction is optimised for continuous outdoor operation and seamlessly integrated into the pylon design. With this installation, Piron Metallbau sets new standards in large-format outdoor advertising and urban brand presence.

7

Indoor · Aura Stage · movable 6 × 3 m

Steinhof Duisburg – Indoor

Duisburg

Splittable, laterally movable LED stage wall (Aura Stage series)

At the Steinhof Duisburg, WALED realised an indoor LED stage wall of the Aura Stage series: 6,000 × 3,000 mm, splittable in the centre into 2 × 3,000 × 3,000 mm screens that move laterally on purpose-built special rails. Implemented on a bespoke special substructure – including our own technical planning and complete realisation. Depending on the event, the wall transforms from a continuous large image into a split stage, creating maximum flexibility for events, stage shows and conferences. The footage shows the project in real impressions – from installation to the live event.

7

Outdoor · Advertising pylon · Skyline 960

Steinhof Duisburg – Werbepylon

Duisburg

DOOH advertising pylon with Skyline 960 elements, 3 × 2 cabinets

For the Steinhof Duisburg, WALED erected an outdoor advertising pylon: fitted with Skyline 960 × 960 elements in 3 × 2 cabinets (width × height), on a pylon with a custom-engineered foundation. From the building application and complete technical planning to the connection with the client-managed playback system – all from a single source. The construction phases, from laying the foundation and crane installation to the finished, glowing pylon, show the project in real impressions. On request, we also realise pylons as a hire-purchase or usage concept at attractive DOOH locations in the NRW region.

Façade · 6 × 3 m · Signature Skyline

Raumdesign Dommers

Germany

Power screen for south-facing performance

For Raumdesign Dommers, a premium outdoor system with a WALED Signature Skyline LED screen was realised. Measuring 6 × 3 metres and reaching up to 8,000 nits on demand, it remains perfectly legible even in direct south-facing sunlight. The system is run independently via the Novastar Taurus platform. With intuitive control, automatic brightness adjustment via light sensors and reliable 24/7 operation, the installation offers maximum flexibility and operational safety – a real eye-catcher on the street with Signature quality by WALED.

5

Meeting room · Conference Ratio

valantic

Cologne

Ultra-flat LED display for modern workplaces

For the management consultancy valantic in Cologne, WALED Videowalls realised an ultra-flat LED screen from the Conference Ratio series. The bespoke solution blends elegantly into the modern meeting room and delivers brilliant image quality for video conferences, presentations and workshops. The 16:9 format, HDR support and high colour fidelity make it ideal for companies that value high-quality business communication. The particularly slim build guarantees seamless integration into the interior design.

6

Hospitality · megascreen 2 × 3.5 m

Sportgastronomie „The Fan“

Magdeburg

One megascreen replaces six displays

In the well-known sports bar The Fan, a 2 × 3.5 metre LED megascreen was installed in the large interior – for the live broadcast of all kinds of sporting events, perfectly suited to a high-traffic sports venue. The powerful screen completely replaces six previously used large displays and provides a uniform, large-format image with significantly improved visibility from every part of the room. With high brightness, strong contrast and fluid motion, guests now experience games and highlights centrally, emotionally and without visual interruptions – a lasting upgrade of the entire venue in the heart of Magdeburg.

Application example: WALED LED trailer 1

Application example: WALED LED trailer 2

Application example: WALED LED trailer 3

Application example: WALED LED trailer 4

Application example: WALED LED trailer 5

Application example: WALED LED trailer 6

7

Mobile · LED trailer · AI visualisation

Application example: WALED LED trailer

Visualisation

Mobile LED walls on trailers – how a deployment can look

Mobile, ready in minutes and an instant eye-catcher: the WALED LED trailers bring large-format LED surfaces to any location. Whether on a busy city square, in front of an event venue or paired with a large outdoor stage – whose backdrop we dress with our Aura Stage series as a brilliant LED background. Weatherproof, ultra-bright and razor-sharp: ideal for promotion, public viewing, trade shows and events. — Note: the images are AI visualisations of possible deployments, not photographs of completed projects.

Application example: retractable luxury LED screen 1

Application example: retractable luxury LED screen 2

Application example: retractable luxury LED screen 3

Application example: retractable luxury LED screen 4

4

Bespoke solution · outdoor COB · AI visualisation

Application example: retractable luxury LED screen

Bespoke solution · visualisation

Hydraulically controlled LED system for exclusive pools

WALED Videowalls presents luxury custom engineering at the highest level: a fully hydraulically retractable outdoor LED screen that disappears almost invisibly into the ground at the touch of a button and integrates seamlessly into the architecture. With industry-leading COB (chip-on-board) technology, the screen offers a 16:9 format, up to 5,000 nits, an HDR ultra colour gamut and rich contrast – razor-sharp even in direct sunlight. The modules are IP-rated, impact-resistant and designed for continuous outdoor operation. A silent high-performance lift and an integrated high-end speaker system deliver an unrivalled audiovisual experience. A bespoke solution for luxury properties, exclusive pool areas and premium event locations. — Note: the images are AI visualisations of possible deployments, not photographs of completed projects.

Schwimmstadion Duisburg – Videowand am Beckenrand 1

Schwimmstadion Duisburg – Videowand am Beckenrand 2

Schwimmstadion Duisburg – Videowand am Beckenrand 3

Schwimmstadion Duisburg – Videowand am Beckenrand 4

Schwimmstadion Duisburg – Videowand am Beckenrand 5

Schwimmstadion Duisburg – Videowand am Beckenrand 6

6

Fixed installation · WALED SIGNATURE MARINA · 5.00 × 3.00 m = 15 sqm

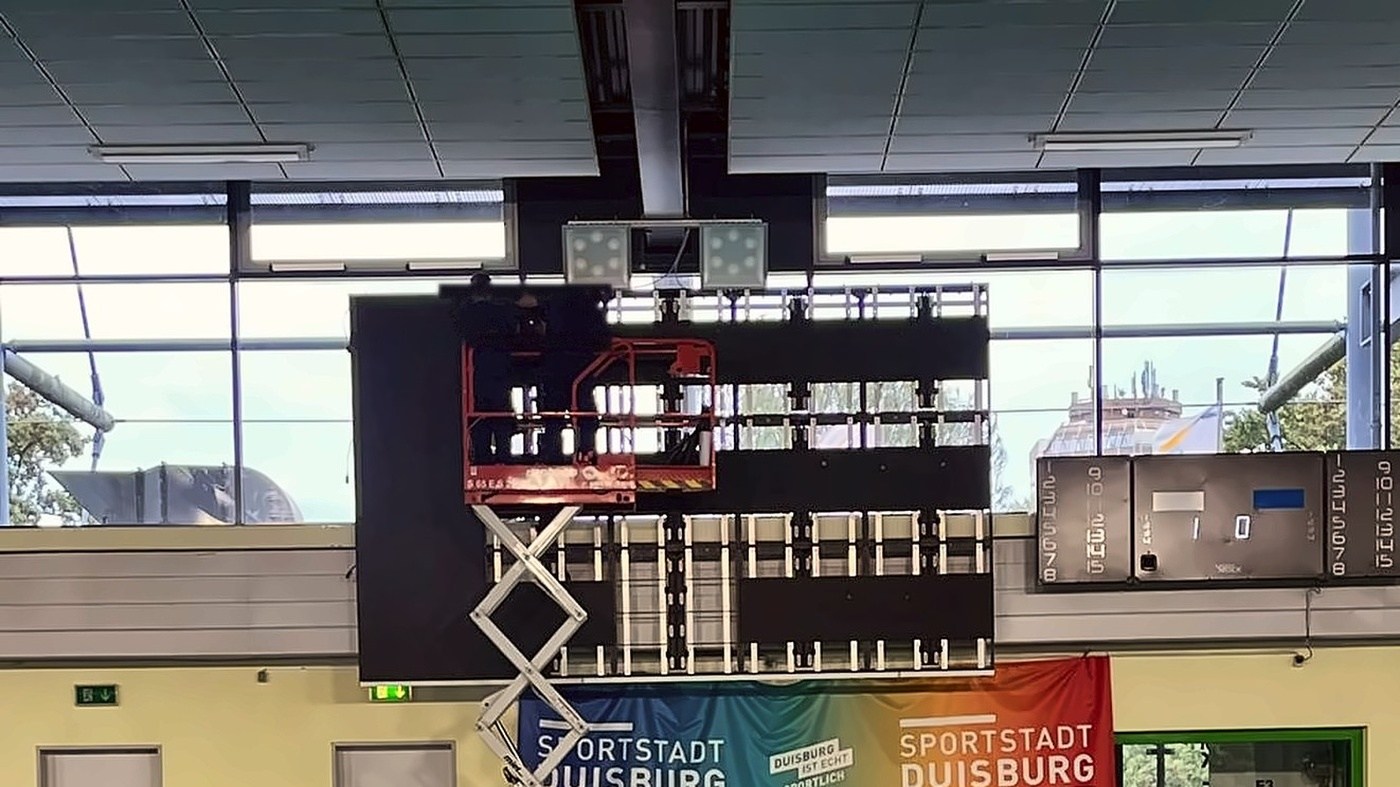

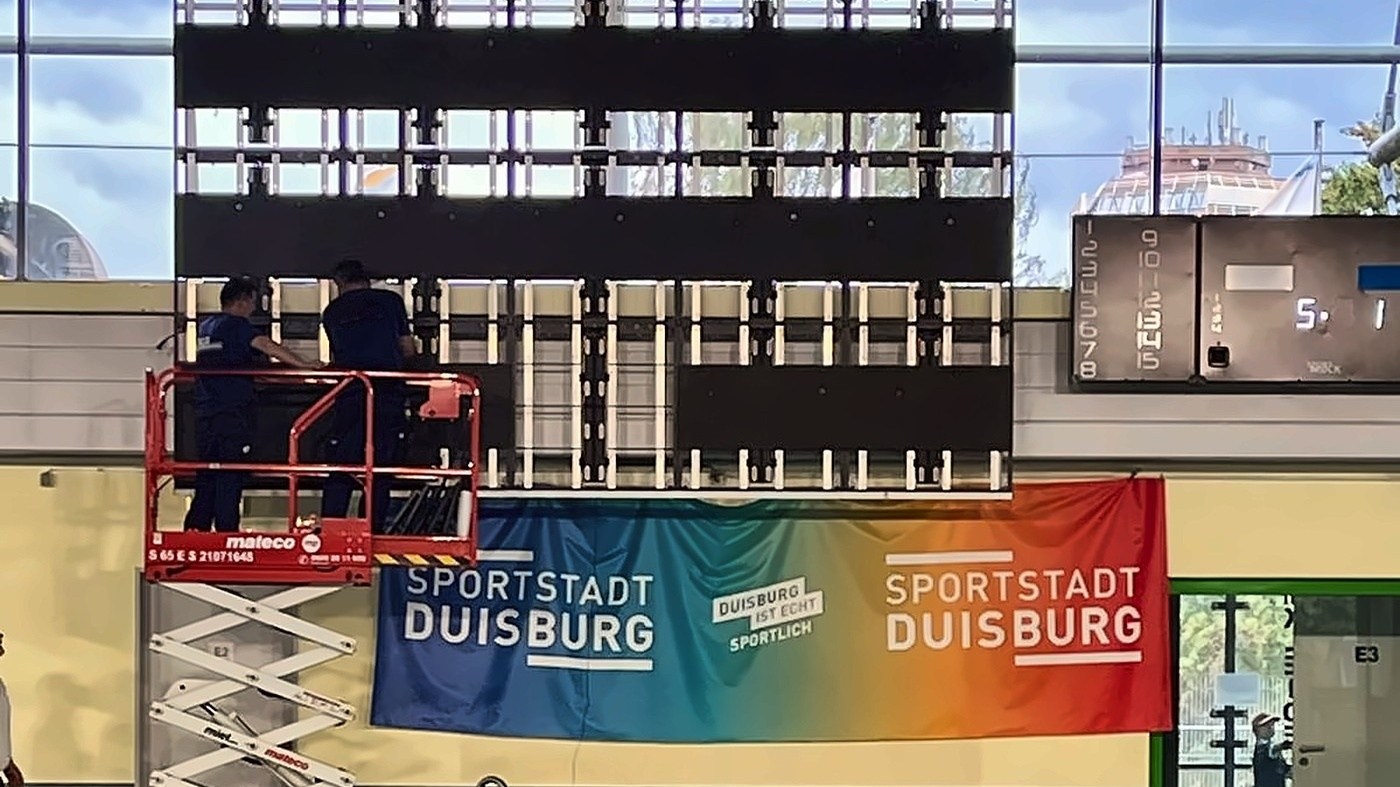

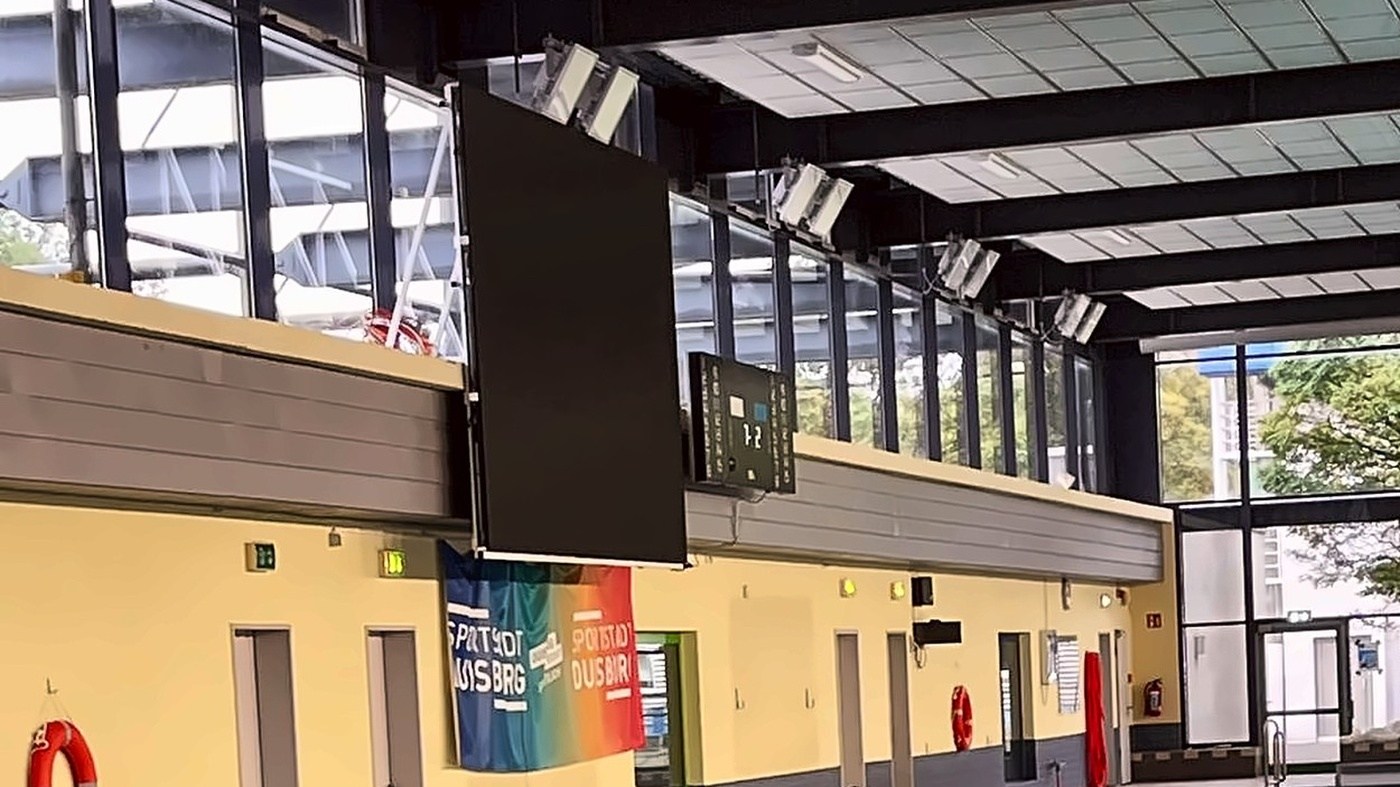

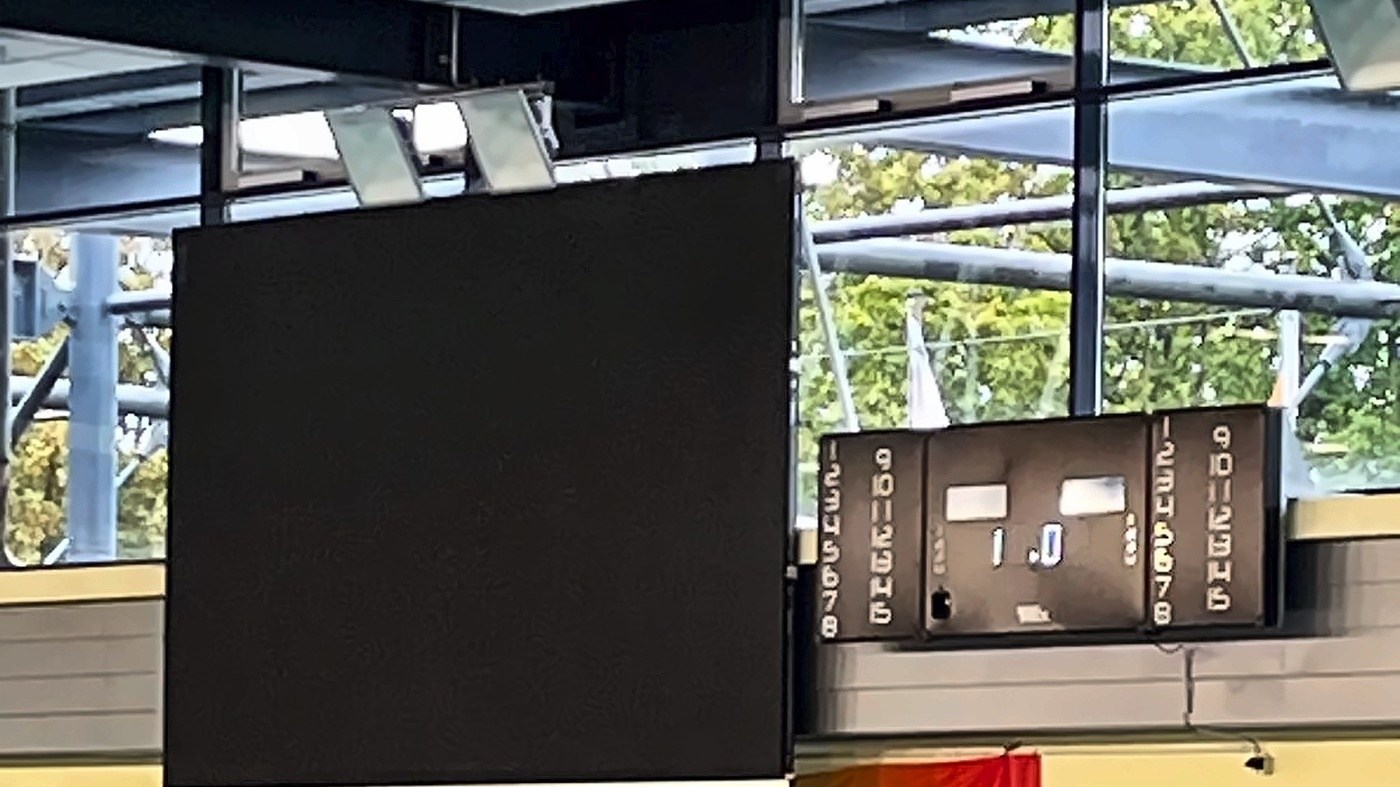

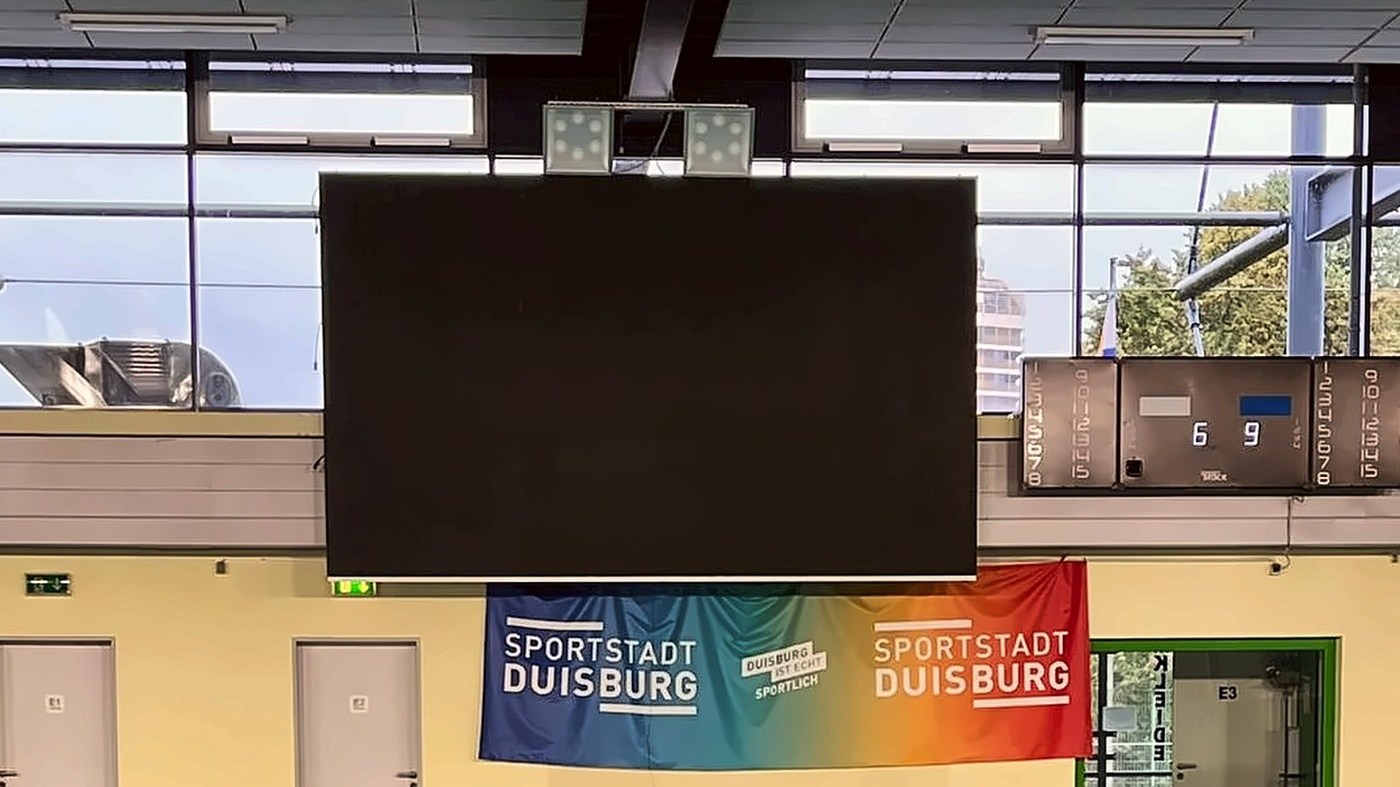

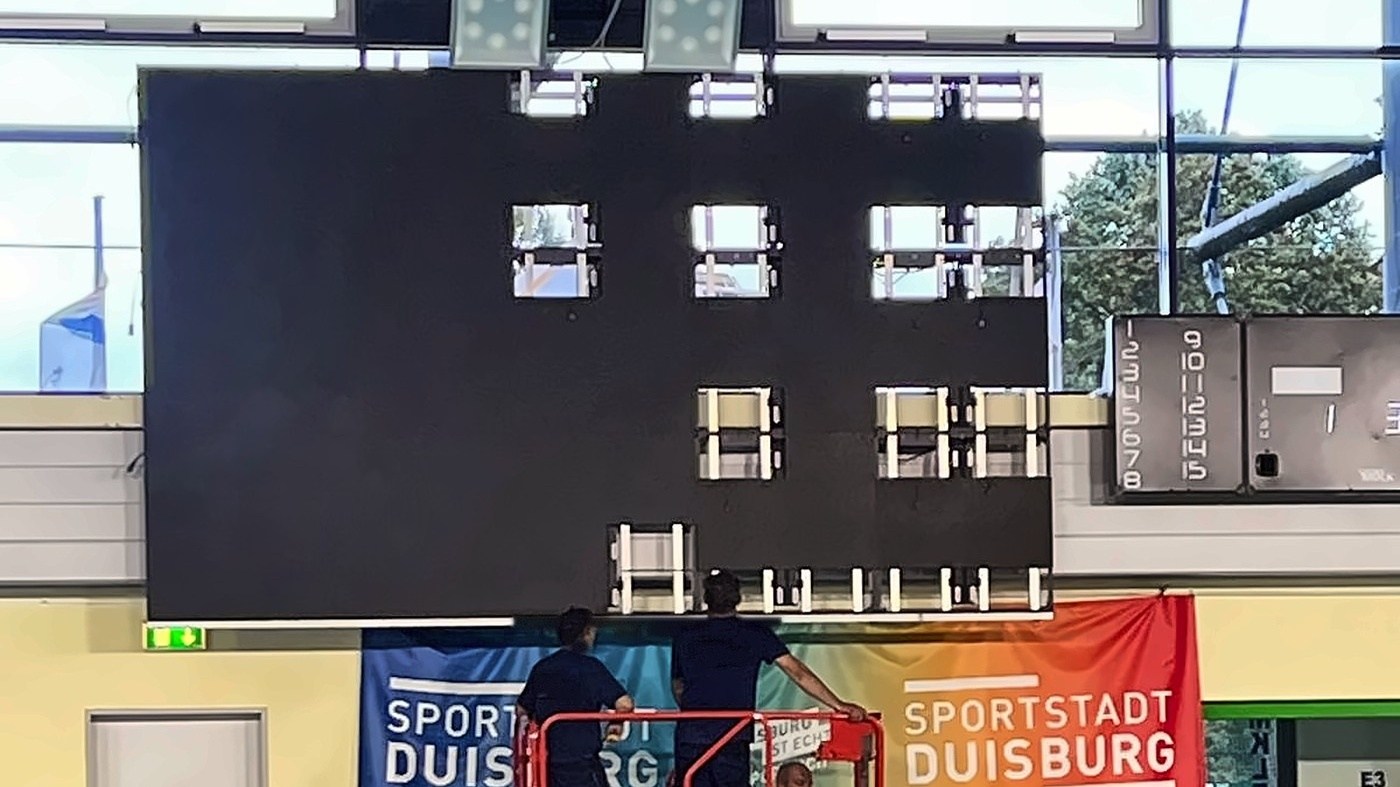

Schwimmstadion Duisburg – Videowand am Beckenrand

Duisburg

15 sqm video wall above the pool – built for chlorine air and constant humidity

The Schwimmstadion Duisburg now has a video wall where a scoreboard used to be. 5.00 × 3.00 m above the pool, centred on the 25 m line: times, lanes, moving images and sponsor space – all on one surface instead of spread across several displays. An indoor pool is one of the toughest places there is for LED technology. Chlorine air and permanently high humidity wear down ordinary outdoor walls within one to two years. That is why this project uses the SIGNATURE MARINA series – our specialist line for coast, harbour and pool, IP66 certified, with protective layers on every single component. The picture stays bright enough for full sunlight through the hall windows, and servicing is done entirely from the front – which counts double above water. Installed in September 2026 while the pool stayed open. Additional advertising space for funding partners and sponsors is available at the sides.
