View productHome / Fixed Outdoor / SIGNATURE SKYLINE
Full aluminium · IP66
SIGNATURE SKYLINE
Full aluminium. Fully considered.
The precision-milled aluminium system for large-format outdoor walls – around 20 % lighter, ultra-flat and exceptionally even.
Pixel Pitch 2.97 mmPixel Pitch 3.91 mmPixel Pitch 4.81 mmPixel Pitch 6.25 mmPixel Pitch 7.81 mmPixel Pitch 10.42 mm
In brief
The SIGNATURE SKYLINE is a WALED LED video wall for outdoor fixed installation. The precision-milled aluminium system for large-format outdoor walls – around 20 % lighter, ultra-flat and exceptionally even. Available pixel pitches: P2.97 bis P10.42. Ingress protection: IP66. Brightness: depending on variant ≥ 5.000 nits or ≥ 6.500 nits.
Full aluminium. Fully considered.
The SIGNATURE SKYLINE was engineered to deliver large-scale projects with maximum precision and efficiency. Each cabinet is built from a precision-milled aluminium frame – robust, ultra-flat and around 20 % lighter than conventional steel constructions. The result: less weight, faster installation and outstanding flatness – ideal for large-format LED walls and architectural outdoor displays.
Highlights
What sets the SIGNATURE SKYLINE apart
Brilliance without compromise
Up to 16-bit colour depth, 5,000–10,000 nits brightness and an 8000:1 contrast ratio deliver razor-sharp images – even in direct sunlight.
Custom sizes

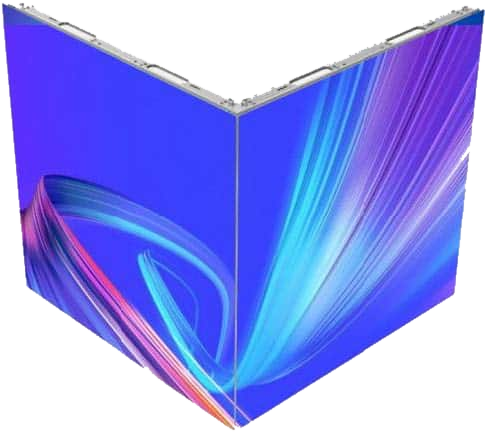

Standard 1000 × 1000 mm, plus 1000 × 500, 1500 × 500 and 1500 × 1000 mm. 90° corner version, curved (any angle) and rounded corner.
Light & weatherproof
Just 25 kg per m² and IP66 protection – weatherproof and built for continuous outdoor operation.
Front & rear service
Tool-free service from front and rear, 100,000-hour lifespan and a 3840/7680 Hz refresh rate.
≥ 5000 nits
Peak brightness
3840/7680 Hz
Refresh rate
14–16 bit
Greyscale
IP66
Protection
-40 bis +80 °C / 10–98 % rF
Operating range
186 W/m²
Power

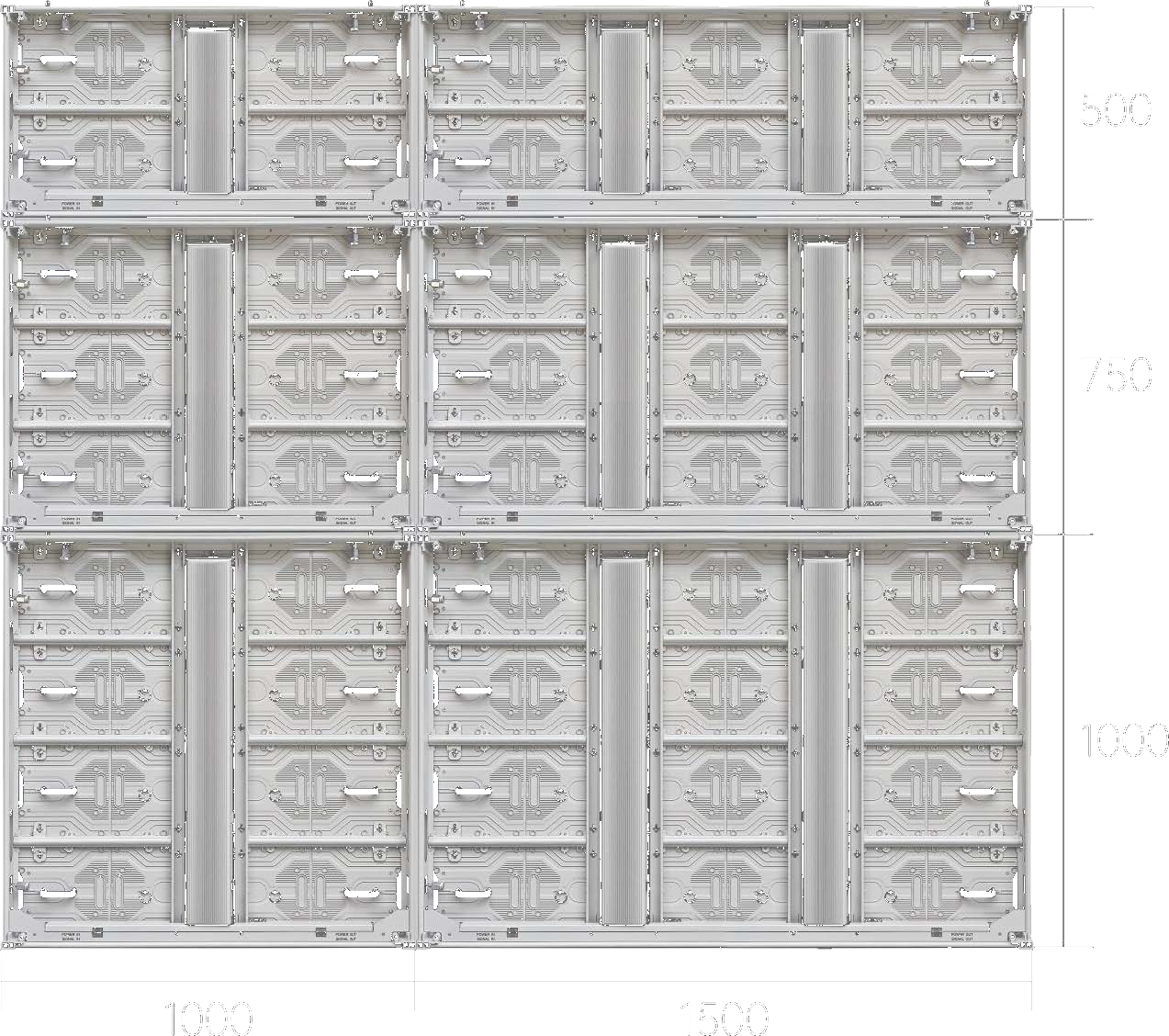

Dimensions & formats
Modular by design
The modular design allows cabinets to be combined in almost any format – for creative architecture, bespoke LED surfaces and seamless transitions.
Technical specifications
SIGNATURE SKYLINE – Technical specifications
| Parameter | SIGSKY-2.97 | SIGSKY-3.91 | SIGSKY-4.81 | SIGSKY-6.25 | SIGSKY-7.81 | SIGSKY-10.42 |
|---|---|---|---|---|---|---|
| Pixel composition (SMD) | 1415 | 1415 | 1921 | 2727 | 2727 | 2727 |
| Pixel pitch (mm) | 2,97 | 3,91 | 4,81 | 6,25 | 7,81 | 10,42 |
| Module resolution (W × H) | 168 × 84 | 128 × 64 | 104 × 52 | 80 × 40 | 64 × 32 | 48 × 24 |
| Module size (mm) | 500 × 250 × 16 | 500 × 250 × 16 | 500 × 250 × 16 | 500 × 250 × 16 | 500 × 250 × 16 | 500 × 250 × 16 |
| Module weight (kg) | 1,93 | 1,93 | 1,93 | 1,93 | 1,93 | 1,93 |
| Modules per cabinet (W × H) | 2 × 4 | 2 × 4 | 2 × 4 | 2 × 4 | 2 × 4 | 2 × 4 |
| Cabinet resolution (W × H) | 336 × 336 | 256 × 256 | 208 × 208 | 160 × 160 | 128 × 128 | 96 × 96 |
| Cabinet size (mm) | 1000 × 1000 × 84,5 | 1000 × 1000 × 84,5 | 1000 × 1000 × 84,5 | 1000 × 1000 × 84,5 | 1000 × 1000 × 84,5 | 1000 × 1000 × 84,5 |
| Cabinet area (m²) | 1 | 1 | 1 | 1 | 1 | 1 |
| Cabinet weight (kg) | 25 | 25 | 25 | 25 | 25 | 25 |
| Cabinet material | Profil-Cabinet | Profil-Cabinet | Profil-Cabinet | Profil-Cabinet | Profil-Cabinet | Profil-Cabinet |
| Pixel density (px/m²) | 112.896 | 65.536 | 43.264 | 25.600 | 16.384 | 9.216 |
| Protection rating (IP) | IP66 | IP66 | IP66 | IP66 | IP66 | IP66 |
| Brightness, white (nits) | ≥ 5000 | ≥ 6500 | ≥ 6500 | ≥ 6500 | ≥ 6500 | ≥ 6500 |
| Colour depth (bit) | 14–16 | 14–16 | 14–16 | 14–16 | 14–16 | 14–16 |
| Viewing angle (H/V) | 162° / 144° | 162° / 144° | 162° / 144° | 162° / 144° | 162° / 144° | 162° / 144° |
| Contrast ratio | 8000:1 | 8000:1 | 8000:1 | 8000:1 | 8000:1 | 8000:1 |
| Avg. power (W/m²) | 186 | 186 | 186 | 186 | 186 | 186 |
| Max. power (W/m²) | 550 | 550 | 550 | 550 | 550 | 550 |
| Refresh rate (Hz) | 3840/7680 | 3840/7680 | 3840/7680 | 3840/7680 | 3840/7680 | 3840/7680 |
| Maintenance | Front & Rück | Front & Rück | Front & Rück | Front & Rück | Front & Rück | Front & Rück |
| Lifespan (hrs) | 100.000 | 100.000 | 100.000 | 100.000 | 100.000 | 100.000 |
| Operating temp. / humidity | -40 bis +80 °C / 10–98 % rF | -40 bis +80 °C / 10–98 % rF | -40 bis +80 °C / 10–98 % rF | -40 bis +80 °C / 10–98 % rF | -40 bis +80 °C / 10–98 % rF | -40 bis +80 °C / 10–98 % rF |
* Note: Maximum power consumption may vary by approx. 10 % depending on the LED batch. Specifications subject to change.
Learn more
Background & technology
Related products
More systems in the same category
WALED PYLON
Turnkey LED advertising pylons: steel column built in NRW, foundation per statics, equipped with SIGNATURE RATIO or SIGNATURE 960 panels. End-to-end service including planning support, ABC Finance leasing, installation and 24/7 service.
View product
SIGNATURE 960
Weatherproof outdoor system on the 960 mm grid – ideal for façades, DOOH totems and advertising surfaces.
View productInterested in the SIGNATURE SKYLINE?
Configure your project now in minutes – instant and non-binding.
Configure your LED wall
FAQ
Frequently asked questions about SIGNATURE SKYLINE
What is the SIGNATURE SKYLINE suitable for?
The SIGNATURE SKYLINE was engineered to deliver large-scale projects with maximum precision and efficiency. Each cabinet is built from a precision-milled aluminium frame – robust, ultra-flat and around 20 % lighter than conventional steel constructions. The result: less weight, faster installation and outstanding flatness – ideal for large-format LED walls and architectural outdoor displays.
What pixel pitch does the SIGNATURE SKYLINE have?
The SIGNATURE SKYLINE is available with pixel pitches P2.97, P3.91, P4.81, P6.25, P7.81, P10.42. Which pitch suits your project depends on the viewing distance: as a rule of thumb, the pitch in millimetres roughly equals the minimum viewing distance in metres. WALED explains this in detail at www.ledwalls.de/pixel-pitch-erklaert.
What ingress protection does the SIGNATURE SKYLINE have?
The SIGNATURE SKYLINE is specified with ingress protection IP66. WALED explains what the individual IP ratings mean and which rating is required for indoor, shop window, outdoor or coastal locations at www.ledwalls.de/ip-schutzklassen-erklaert.
How bright is the SIGNATURE SKYLINE?
The SIGNATURE SKYLINE reaches depending on variant ≥ 5.000 nits or ≥ 6.500 nits. Whether this suffices for your location depends on ambient light: 600 to 1,200 nits in a conference room, 1,500 to 2,500 nits in a lobby, 3,500 to 5,000 nits outdoors in shade and 6,000 nits or more in direct sunlight.
What are the SIGNATURE SKYLINE cabinet dimensions?
Per data sheet – Cabinet size (mm): 1.000 × 1.000 × 84,5. Cabinet weight (kg): 25. Cabinet dimensions and weight form the basis for structural design, substructure, installation planning and freight calculation. WALED handles the design during project planning.
Is the SIGNATURE SKYLINE camera-ready?
The SIGNATURE SKYLINE operates at a refresh rate of 3.840/7.680 Hz. For context: 1,920 Hz already looks smooth to the human eye, camera productions in rental and live work typically need 3,840 Hz, and TV studio, film production and xR stages need 7,680 Hz.
Can I rent or buy the SIGNATURE SKYLINE?
The SIGNATURE SKYLINE is designed for fixed installation and is sold, planned and installed by WALED. WALED VIDEOWALLS GmbH delivers, installs and services throughout Germany from Duisburg. Request a non-binding quote via the LED wall configurator at www.ledwalls.de/konfigurator or the contact form at www.ledwalls.de/kontakt.
