Outdoor fine pitch · IP66
WALED AMETYST
Fine pitch for outdoors – close-up viewing, weatherproof, easy to service.
Fine-pitch outdoor LED: 1.95 and 2.9 mm pitch, die-cast aluminium, IP66, 5VB, up to 5,000 nits and front/rear service – for retail chains, transit stops, museums and showrooms.
Pixel Pitch 1.9 mmPixel Pitch 2.9 mm
In brief
The WALED AMETYST is a fine-pitch LED system by WALED Videowalls for outdoor fixed installation. Pixel pitches: 1.95 mm (P1.9) and 2.9 mm (P2.9). 500 × 500 × 65 mm die-cast aluminium cabinet, IP66, 5VB fire rating, up to 5,000 nits, front and rear service.
Fine pitch for outdoors – close-up viewing, weatherproof, easy to service.
WALED AMETYST brings fine pitch outdoors: with 1.95 and 2.9 mm pixel pitch the wall shows a closed, detailed image even from a few metres away – where outdoor LED usually looks coarse. Module and cabinet are die-cast aluminium, the cabinet is IP66-protected front and rear and 5VB fire-rated. Up to 5,000 nits, 3,840 Hz and 16-bit grey scale keep the picture legible in daylight and clean on camera. Front and rear service plus 500 × 500 mm cabinets only 65 mm deep and 9 kg light make mounting on walls, pylons or facades simple.
Highlights
What sets the WALED AMETYST apart
Fine pitch outdoors
1.95 mm and 2.9 mm pitch: the image looks seamless from about 2 or 3 m – ideal where passers-by stand right in front of the wall.
Die-cast aluminium
Die-cast aluminium module and cabinet: dimensionally accurate, flat and stable for years – for clean cabinet joints.
IP66 and 5VB
Front and rear protected to IP66 against water jets and dust, housing 5VB fire-rated – for permanent outdoor operation.
Up to 5,000 nits
4,500 nits at P1.9, 5,000 nits at P2.9: enough headroom for daylight at shop fronts, bus stops and entrances.
Front and rear service
Modules, receiving cards and power supplies are accessible from front and rear – wall-flush installations stay easy to service.
Light and slim
500 × 500 mm cabinet, 65 mm deep and 9 kg: low load on walls, substructures or pylons – wall-mounted, hung or stacked.

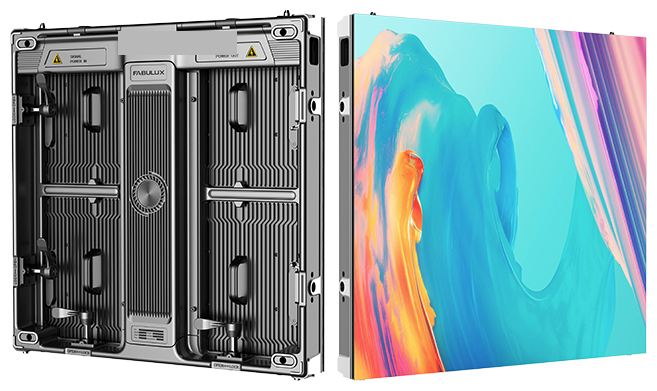

Die-cast aluminium precision
Die-cast aluminium module and cabinet: flat, stable and fitted with quick locks for fast, clean installation.

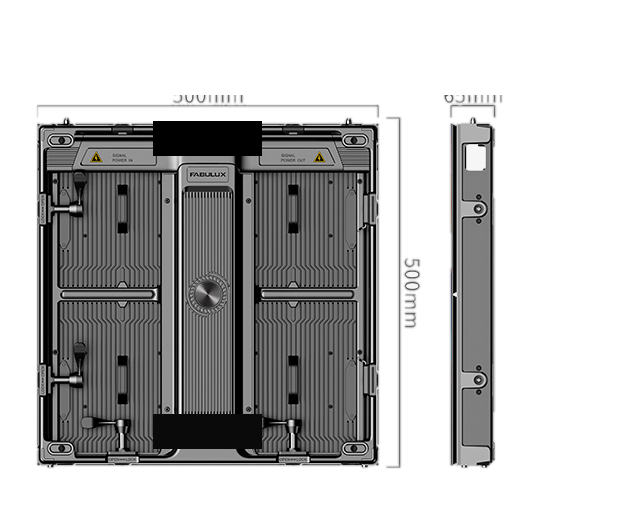

500 × 500 × 65 mm
Square 500 mm cabinet with four 250 mm modules, only 65 mm deep and 9 kg light – easy to plan, carry and stock.

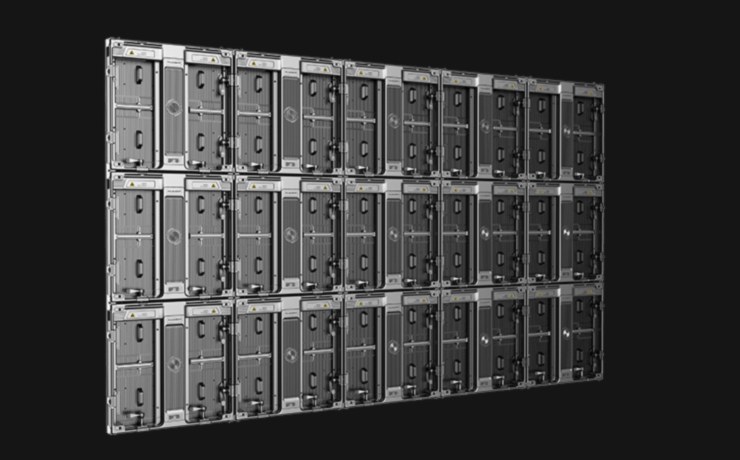

Scalable in 500 mm steps
The standard cabinet builds any format – from shop-front strips and pylon displays to facade surfaces.

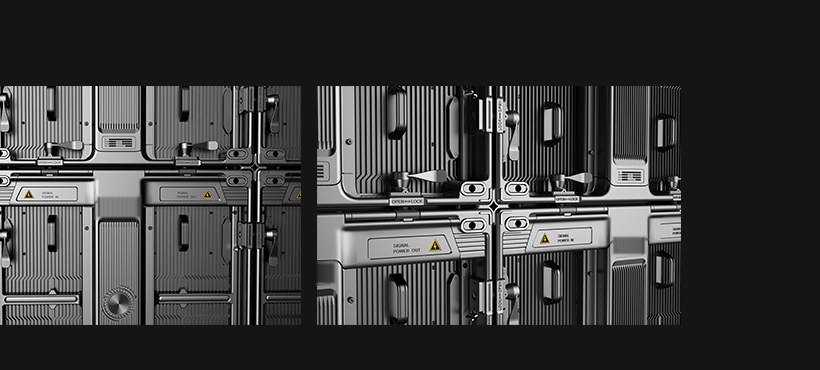

Front and rear service
Clearly marked power and signal ports, quick locks and two-sided access allow module and PSU swaps without dismantling the wall.
Technical specifications
WALED AMETYST – Technical specifications
| Parameter | WALED AMETYST P1.9 | WALED AMETYST P2.9 |
|---|---|---|
| Pixel pitch | 1,95 mm | 2,9 mm |
| LED type | SMD 1212 | SMD 1515 |
| Cabinet size (W × H × D) | 500 × 500 × 65 mm | 500 × 500 × 66 mm |
| Module size | 250 × 250 mm (2 × 2 je Kabinett) | 250 × 250 mm (2 × 2 je Kabinett) |
| Resolution per cabinet | 256 × 256 Pixel | 172 × 172 Pixel |
| Pixel density | 262.144 Pixel/m² | 118.336 Pixel/m² |
| Weight per cabinet | 9 kg (36 kg/m²) | 8,5 kg (34 kg/m²) |
| Material | Die-Cast-Aluminium (Modul + Kabinett) | Die-Cast-Aluminium (Modul + Kabinett) |
| Brightness (max.) | 4.500 nits | 5.000 nits |
| Contrast ratio | 5.000:1 | 7.000:1 |
| Viewing angle (H/V) | 160° / 160° | 160° / 120° |
| Refresh rate | 3.840 Hz | 3.840 Hz |
| Grey scale | 16 bit | 16 bit |
| Power consumption max. / avg. | 600 / 212 W/m² | 600 / 212 W/m² |
| Ingress protection | IP66 (Front + Rückseite) | IP66 (Front + Rückseite) |
| Fire rating | 5VB | 5VB |
| Service | Front + Rückseite | Front + Rückseite |
| Mounting | Wand, hängend, gestapelt | Wand, hängend, gestapelt |
| Certifications | CE, EMC A, ETL, FCC, PSE | CE, EMC A, ETL, FCC, PSE |
| Application | Outdoor-Festinstallation | Outdoor-Festinstallation |
* Values per the series manufacturer data sheet. Final values with your configuration in the quote.
Learn more
Background & technology
Related products
More systems in the same category
SIGNATURE SLIM
Ultra-slim outdoor LED for fixed installation – 76.2 mm depth incl. power box, 28 kg/m², wall mounting without steel substructure, 7,680 Hz, up to 8,000 nits, IP68/IP66, front and rear service. P2.9 to P4.8.
View product
SIGNATURE RATIO
Outdoor fixed LED with unique 320×320 mm module geometry – pixel-precise 16:9 formats up to 5120×2880 mm, 10,000 nits, IP66, TÜV, 5VB fire-proof.
View productInterested in the WALED AMETYST?
Configure your project now in minutes – instant and non-binding.
Configure your LED wall
FAQ
Frequently asked questions about WALED AMETYST
What is the WALED AMETYST suitable for?
For outdoor sites with short viewing distances: retail chains and shop fronts, transit stops and hubs, museums, restaurants and showrooms – wherever people stand close to the wall and expect a fine, calm image.
What pixel pitches does the WALED AMETYST offer?
The WALED AMETYST is available with 1.95 mm (P1.9) and 2.9 mm (P2.9). As a rule of thumb, the pitch in millimetres roughly equals the minimum viewing distance in metres. More at www.ledwalls.de/pixel-pitch-erklaert.
What ingress protection does the WALED AMETYST have?
The WALED AMETYST is IP66-protected front and rear and 5VB fire-rated. WALED explains the IP ratings at www.ledwalls.de/ip-schutzklassen-erklaert.
How bright is the WALED AMETYST?
Up to 4,500 nits at P1.9 and up to 5,000 nits at P2.9. Outdoors in shade 3,500 to 5,000 nits are sufficient; for direct sunlight we recommend 6,000 nits or more – the Signature series is built for that.
Can I rent or buy the WALED AMETYST?
The WALED AMETYST is designed for fixed installation and is sold, planned and installed by WALED. WALED VIDEOWALLS GmbH delivers, installs and services throughout Germany from Duisburg. Request a quote via www.ledwalls.de/konfigurator or www.ledwalls.de/kontakt.
